Used

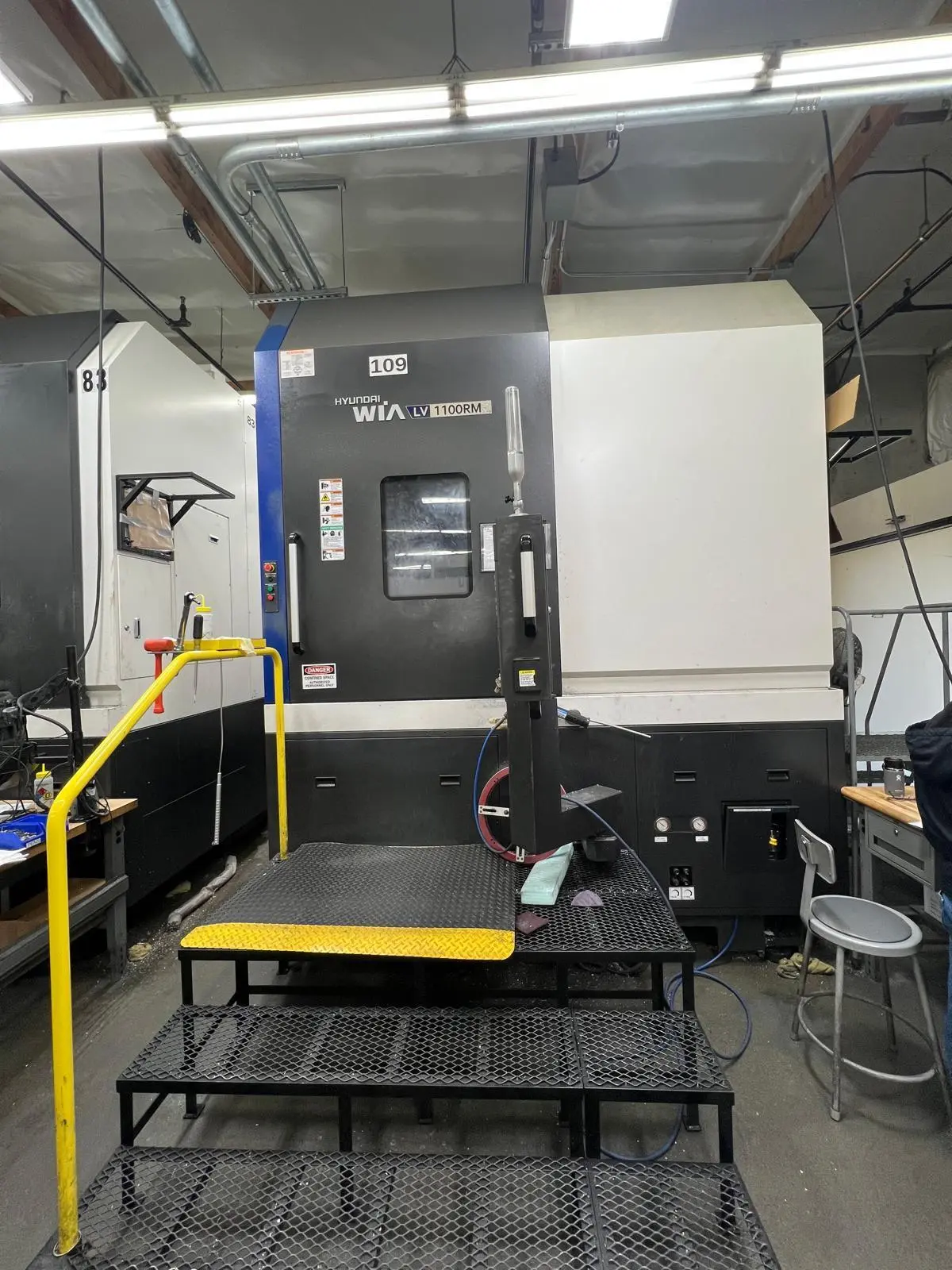

USED 2018 HYUNDAI WIA LV1100RM

Arizona, United States
116Listings|56Followers
Overview
CNC Lathes

2018 HYUNDAI WIA LV1100RM CNC VTL with C-AXIS. Equipped with FANUC 32i-B CONTROL, 12 POSITION ATC, TOOL PRESETTER, and more. Features a 40" Table Dia, 45.7" Max Turning Dia, and 15 HP Live Spindle Motor. Must move immediately! Professional inquiries welcome.

Specs
Table Dia
40"
1,016 mm
Max Swing
53.3"
1,353.8 mm
Maximum Turning Diameter
45.7"
1,160.8 mm
Vertical Travel of Ram, Z-Axis
39.4"
1,000.8 mm
Horizontal Railhead Travel, X-Axis
24.4
24.4
Cross Rail Vertical Travel
24.4"
619.76 mm
Chuck Size
40
40
Main Table Motor
87.2
87.2
Live Spindle Motor
15 HP
15 HP
Live Spindle Speed, 2-Ranges
3600 RPM
3600 RPM
C-Axis Contouring
.001
.001
Table RPM
800 RPM
800 RPM
Automatic Tool Changer
12
12
Rapid Traverse X/Z
945
945
Floor Space
115170000
115170000
Control
CNC (FANUC 32i-B)
CNC (FANUC 32i-B)
Equipped With

FANUC 32i-B CONTROL
C-AXIS
12 POSITION ATC
TOOL PRESETTER
PART PROBE
CHIP CONVEYOR

Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are sold "As Is, Where Is" As inspected, unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements, as we have service techs available.
