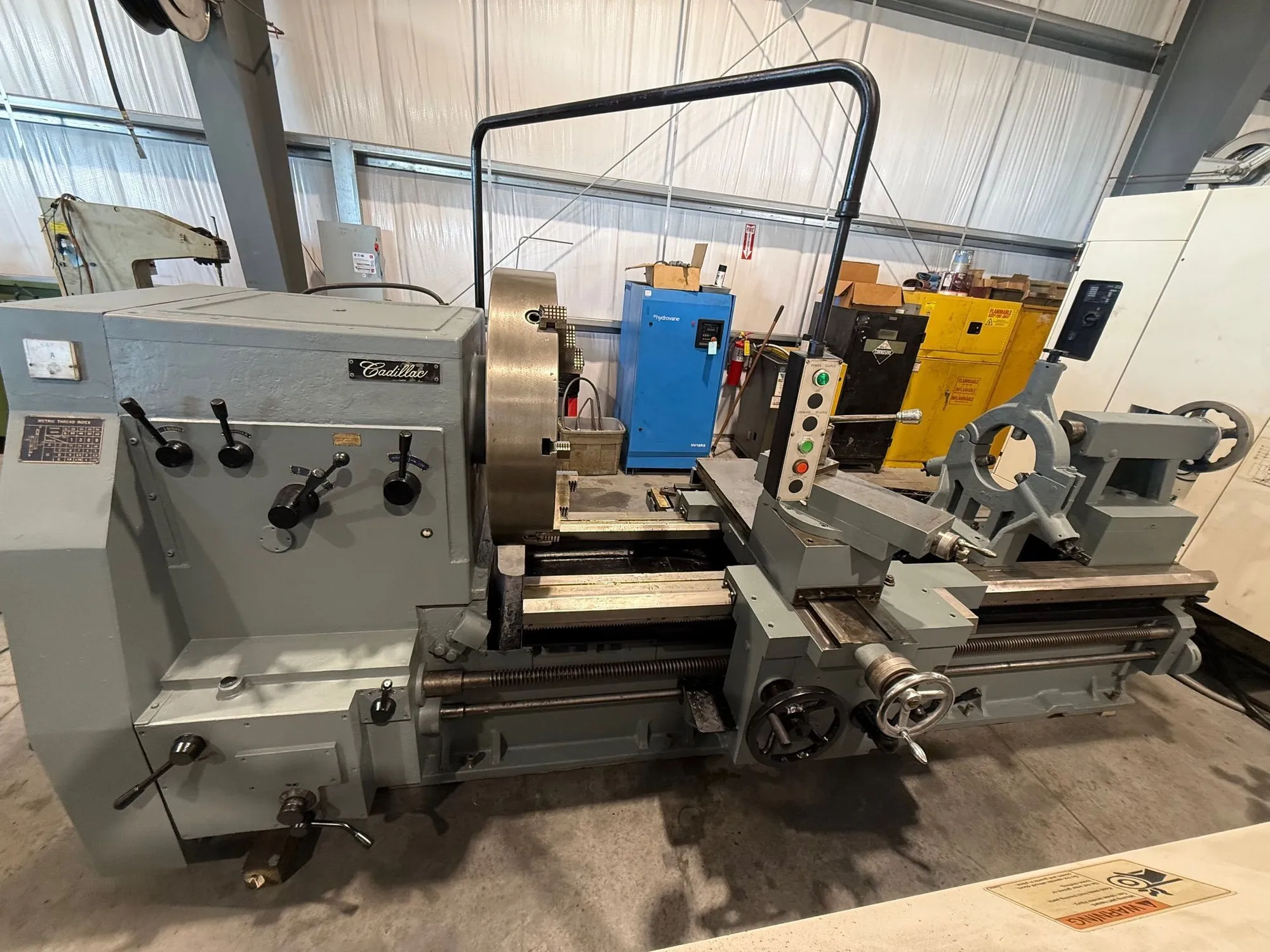

CADILLAC 40”/60” x 80”cc Gap Lathe 4” Bore #7861
| Swing | 40" | 1,016 mm |
| Centers | 80" | 2,032 mm |
| Spindle Bore | 4" | 101.6 mm |
| RPM | 400 RPM | 400 RPM |
| Dimensions | 146” x 64” x 72” H | 146” x 64” x 72” H |
| Weight | 14,000 Lbs. | 14,000 Lbs. |
CADILLAC 40”/60” x 80”cc Gap Lathe 4” Bore #7861
Reference #7861
Model # 4080G
Serial # 202005
Swing over bed- 40”
Swing over gap- 60”
Swing over cross slide- 29”
Distance between centers- 80”
Spindle bore- 4”
Spindle speeds- 5 – 400 R.P.M.
32” BISON 4 Jaw chuck
Aloris tool post
Steady rest 10” capacity
Taper attachment & guide block
Updated Electronics, has a VFD drive for motor control
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 14,000 Lbs.
Machine dimensions- 146” x 64” x 72” H
Machine location- F.O.B. Sarasota, Florida
