USED 1995 TOSHIBA BTD-110R16
Overview
Description

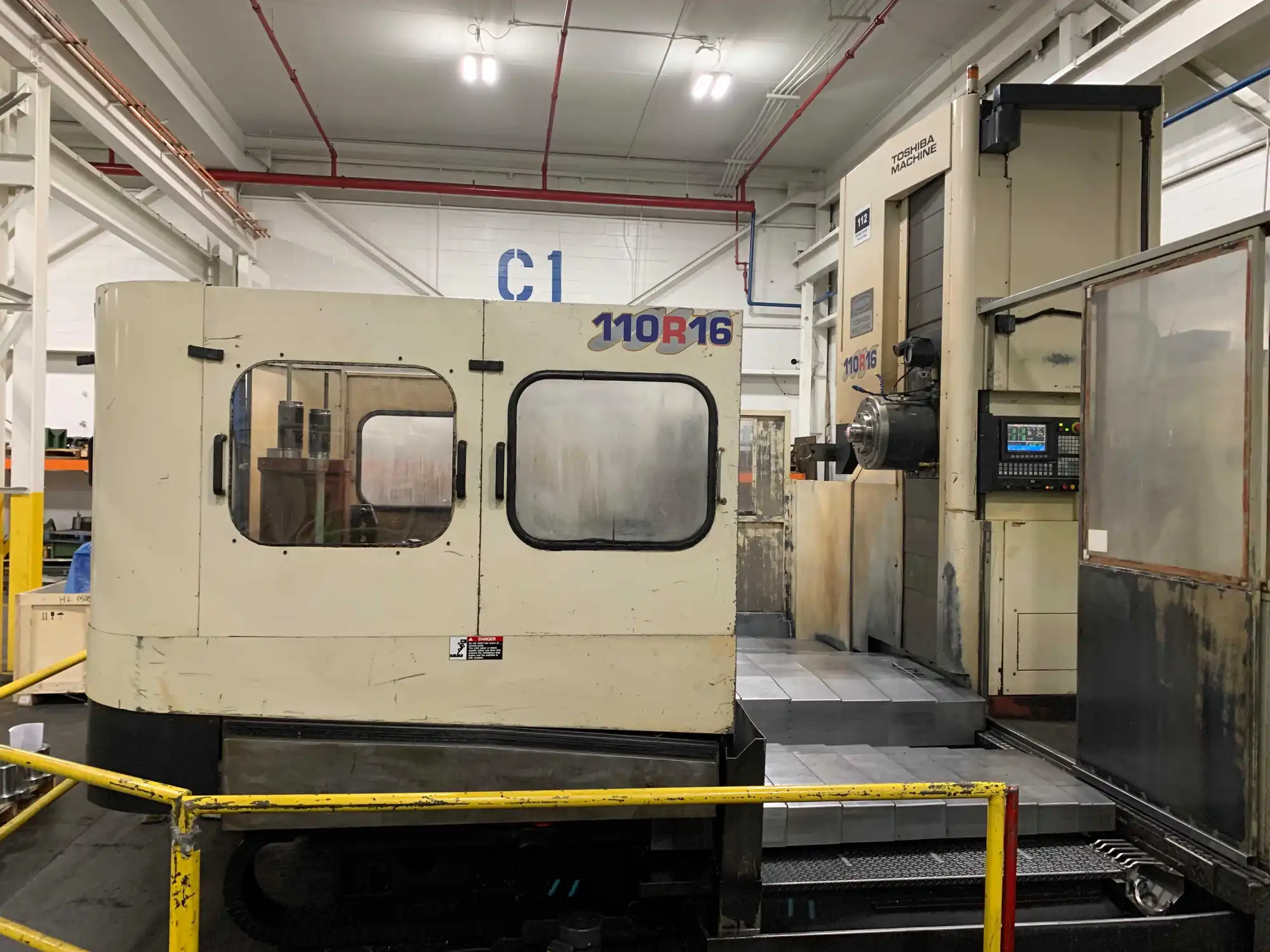

1995 Toshiba BTD-110.R16 Table Type Horizontal Boring Mill
78.7" x 59" x 57", CAT 50, 2500 RPM, Tosnuc 888, Tool Changer, Probing
Specifications
| Spindle Size | 4.3" | 109.22 mm |
|---|---|---|
| X-Horiz Tvl of Table | 78.7" | 1,999 mm |
| Y-Vert Tvl of Head | 59" | 1,498.6 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 65" | 1,651 mm |
| Table-L | 55" | 1,397 mm |
| Spindle Tvl. | 19.7" | 500.38 mm |
Toshiba BTD-110.R16 Table Type Horizontal Boring Mill
New: 1995
Specifications:
Spindle Diameter: 4.3"
Travels:
X-Axis: 78.7"
Y-Axis: 59.0"
Z-Axis: 57.0"
W-Axis: 19.7"
Spindle Motor: 26 HP
Spindle Taper: CAT 50
Spindle Speed: 2500 RPM
Rotary Table Size: 63" x 55"
Weight Capacity: 6.5 Ton
Equipped With:
Tosnuc 888 CNC Control
Automatic Tool Changer (40)
Marposs Probing System
*No Coolant Thru Spindle
