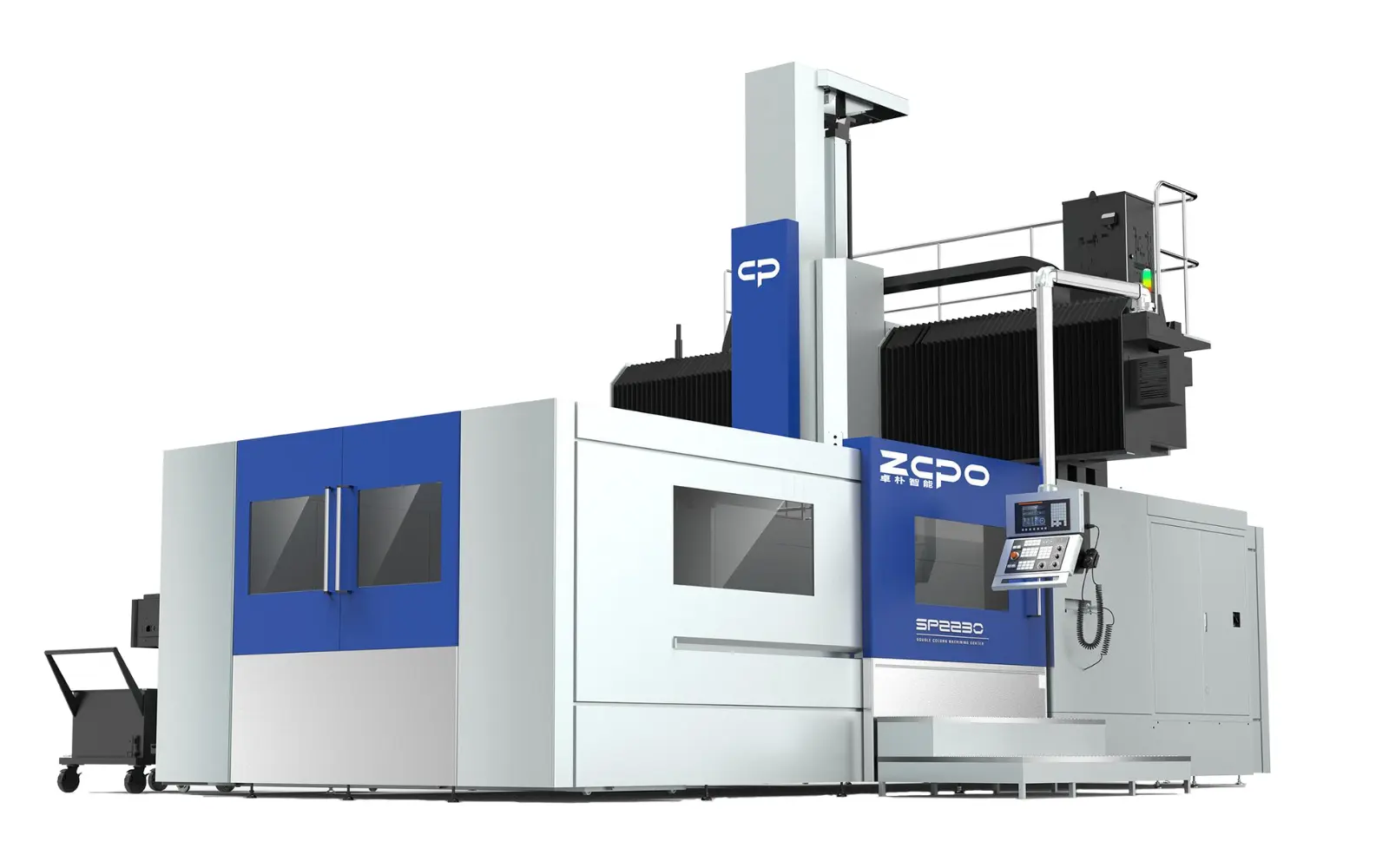

The ZCPO SP2260 Double Column Machining Center is an advanced, high-precision CNC machining solution engineered for superior accuracy, stability, and productivity in large-scale metalworking applications. Built with a robust double-column structure and powered by the FANUC 0i-MF PLUS control system, this machining center ensures exceptional rigidity and smooth performance even during heavy-duty operations. Featuring a CAT50 gear-head spindle delivering up to 26 kW of power and 6,000 rpm, it supports both heavy cutting and high-speed precision machining. Its expansive 6,200 × 2,250 × 1,000 mm travel capacity and a durable 2,000 × 6,000 mm worktable capable of handling 22,000 kg loads make it ideal for machining large molds, dies, and precision components. Equipped with roller-type linear guideways on X/Y axes and a box guideway on Z, the SP2260 guarantees stability and long-term accuracy, reinforced by features such as dynamic spindle balancing, direct-coupled servo motors, and a fully enclosed splash guard for enhanced operator safety.
Standard accessories include a 24-tool arm-type ATC, oil chiller, auto lubrication system, coolant and air gun, and M30 automatic power-off function, ensuring reliability and ease of use. With precision components sourced from leading brands in Japan, Taiwan, and Europe, the SP2260 delivers exceptional build quality and performance longevity. Designed and manufactured by ZOPO Intelligent Equipment Co., Ltd., a trusted name in the machine-tool industry since 1928, the SP2260 combines decades of engineering expertise, advanced R&D, and international quality standards.
Whether for aerospace, automotive, mold-making, or heavy machinery industries, the ZCPO SP2260 Double Column Machining Center is the ultimate solution for manufacturers seeking high rigidity, precision, and productivity in modern CNC machining.
| X-Axis Travel | 6,200 mm | 244.09" |
| Y-Axis Travel | 2,250 mm | 88.583" |
| Z-Axis Travel | 1,000 mm | 39.37" |
| Distance Between Column | 2,400 mm | 94.488" |
| Table Size-X | 2,000 mm | 78.74" |
| Table Size-Y | 6,000 mm | 236.22" |
| Table Load Capacity | 22,000 kg | 48,501.6 lb |
| Standard Spindle Taper | CAT50 | CAT50 |
| Standard Spindle Speed | 6,000 RPM | 6,000 RPM |
| ATC | 24 | 24 |
| CN Control | Fanuc 0i-MF Plus | Fanuc 0i-MF Plus |
FANUC 0I MF PLUS WITH AICC1+10.4’’ LCD SCREEN
SPEED 6.000 RPM GEAR DRIVEN SPINDLE, 22/26KW, CAT50
24 TOOLS ARM TYPE TOOL MAGAZINE
X/Y AXIS ROLLER TYPE LINEAR GUIDEWAY, Z AXIS BOX GUIDEWAY
WATER GUN
AIR GU
OIL SKIMMER
M30 POWER OFF
TRANSFORMER
FOUNDATION PADS
TOOLS AND TOOL BOX
SPINDLE TAPER HOLE CLEANING ROD
OPERATION MANUAL
