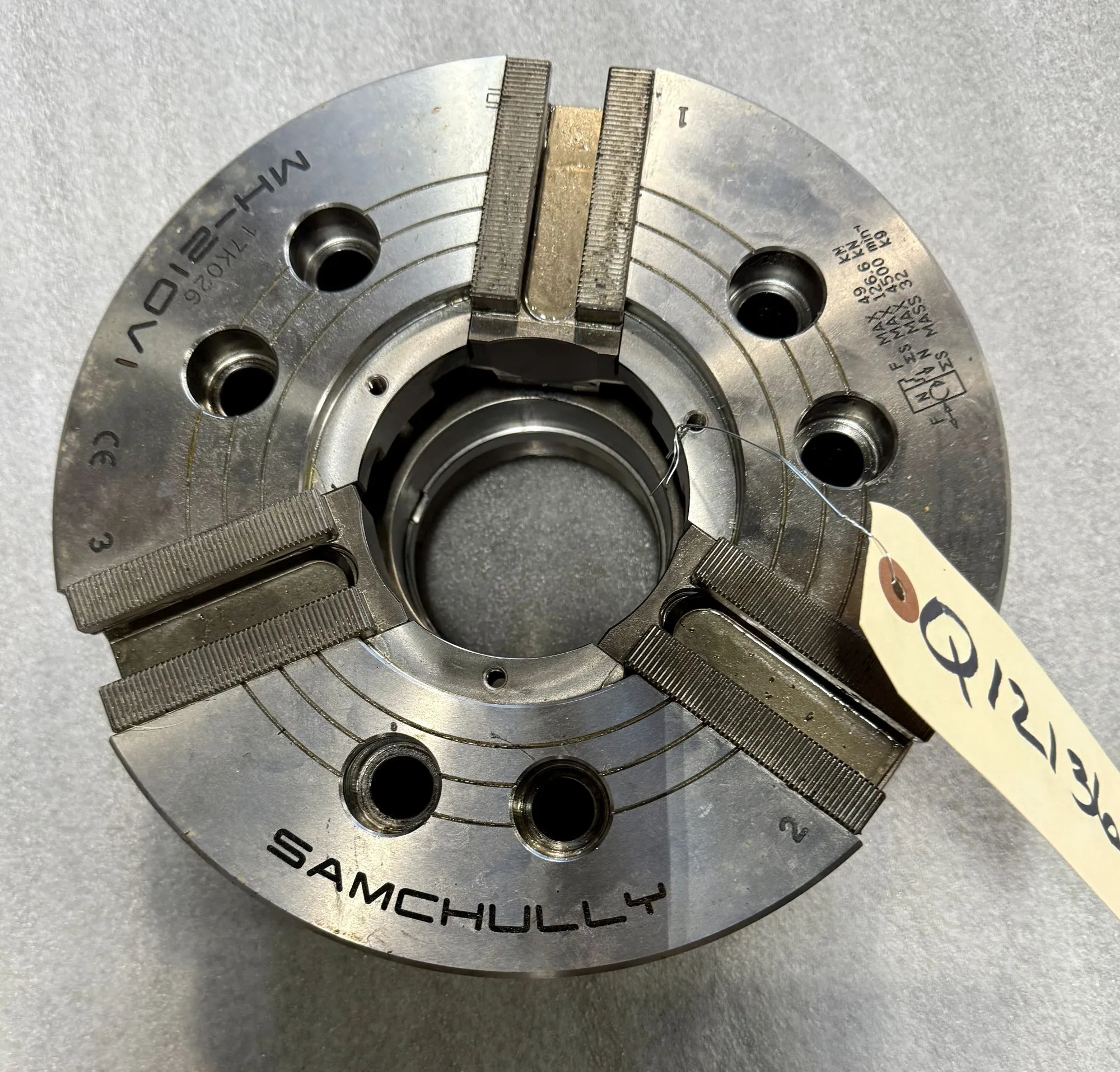

10" SAMCHULLY MH-210V1 3-JAW HYDRAULIC CHUCK, 3.23" Through Hole, 0.35" Jaw Stroke, A2-8 Spindle Nose, 4500 RPM Max Speed, 126.6 kN Clamp Force. Like New!
| # Jaws | 3 | 3 |
| Type of Actuation | Hydraulic | Hydraulic |
| Body Diameter | 10" | 254 mm |
| Body Height | 4.5" | 114.3 mm |
| Through Hole Diameter | 3.23" | 82.042 mm |
| Jaw Stroke | 0.346" | 8.7884 mm |
| Max Speed | 4,500 RPM | 4,500 RPM |
| Max Pull Force | 11,015.6 lbf | 49 kN |
| Max Grip Force | 28,460.8 lbf | 126.6 kN |
| Min Grip | 1.18" | 29.972 mm |
| Max Grip | 10" | 254 mm |
| Dimensions | 10" x 10" x 4.5" | 10" x 10" x 4.5" |
| Weight | 71 lbs | 71 lbs |
Thread Pitch: 2.0
