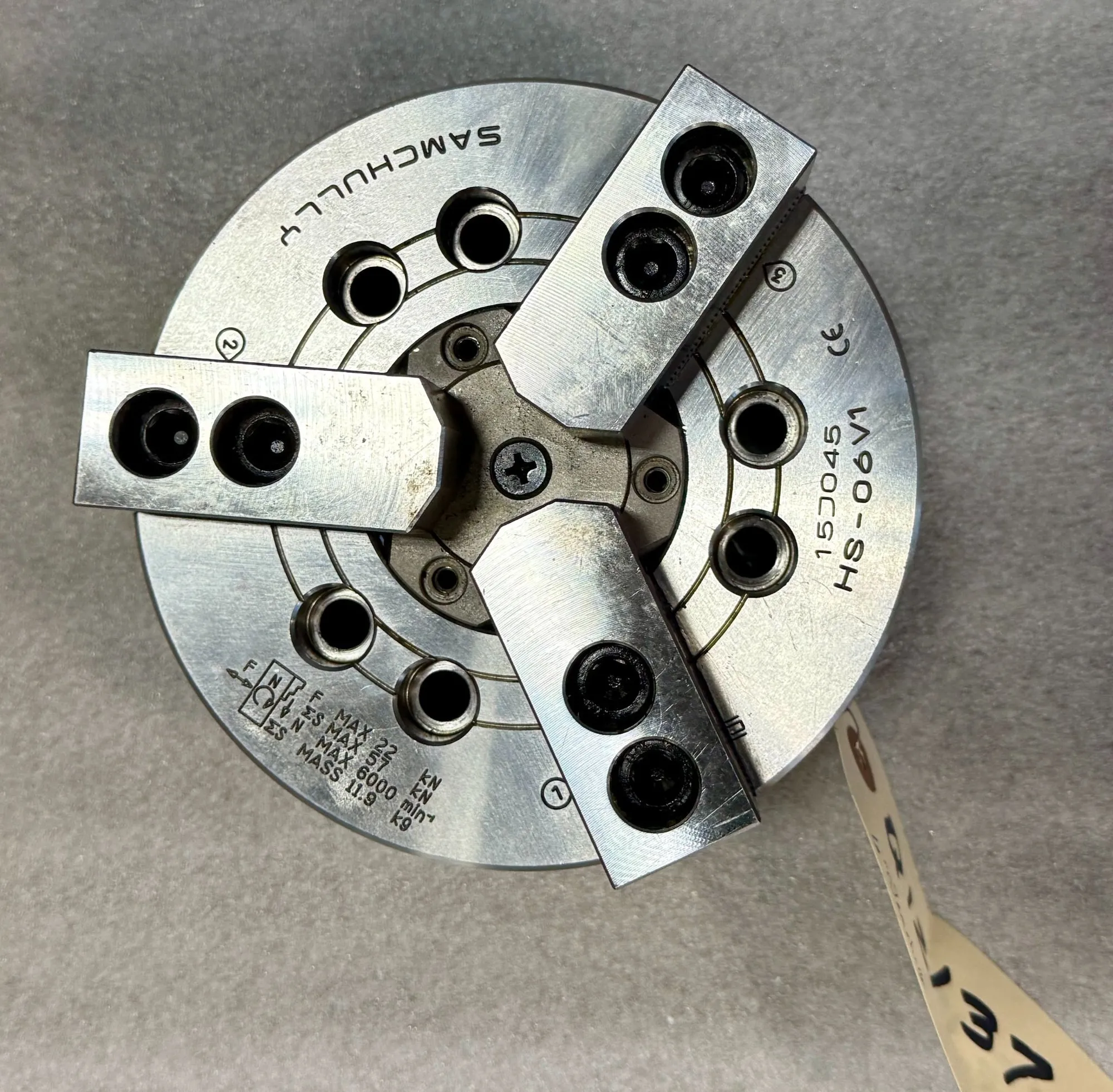

6" SAMCHULLY HS-06V1 3-JAW HYDRAULIC CHUCK, 1.8" Through Hole, 0.22" Jaw Stroke, A2-5 Spindle Nose, 6000 RPM Max Speed, 57 kN Clamp Force.
| # Jaws | 3 | 3 |
| Type of Actuation | Hydraulic | Hydraulic |
| Body Diameter | 6" | 152.4 mm |
| Body Height | 3.5" | 88.9 mm |
| Through Hole Diameter | 1.81" | 45.974 mm |
| Spindle Mount Type | A2-5 | A2-5 |
| Jaw Stroke | 0.216" | 5.4864 mm |
| Max Speed | 6,000 RPM | 6,000 RPM |
| Max Pull Force | 4,945.8 lbf | 22 kN |
| Max Grip Force | 12,814.1 lbf | 57 kN |
| Min Grip | 0.59" | 14.986 mm |
| Max Grip | 6.65" | 168.91 mm |
| Dimensions | 6" x 6" x 3.5" | 6" x 6" x 3.5" |
| Weight | 26.2 lbs | 26.2 lbs |
Thread Pitch: 2.0
