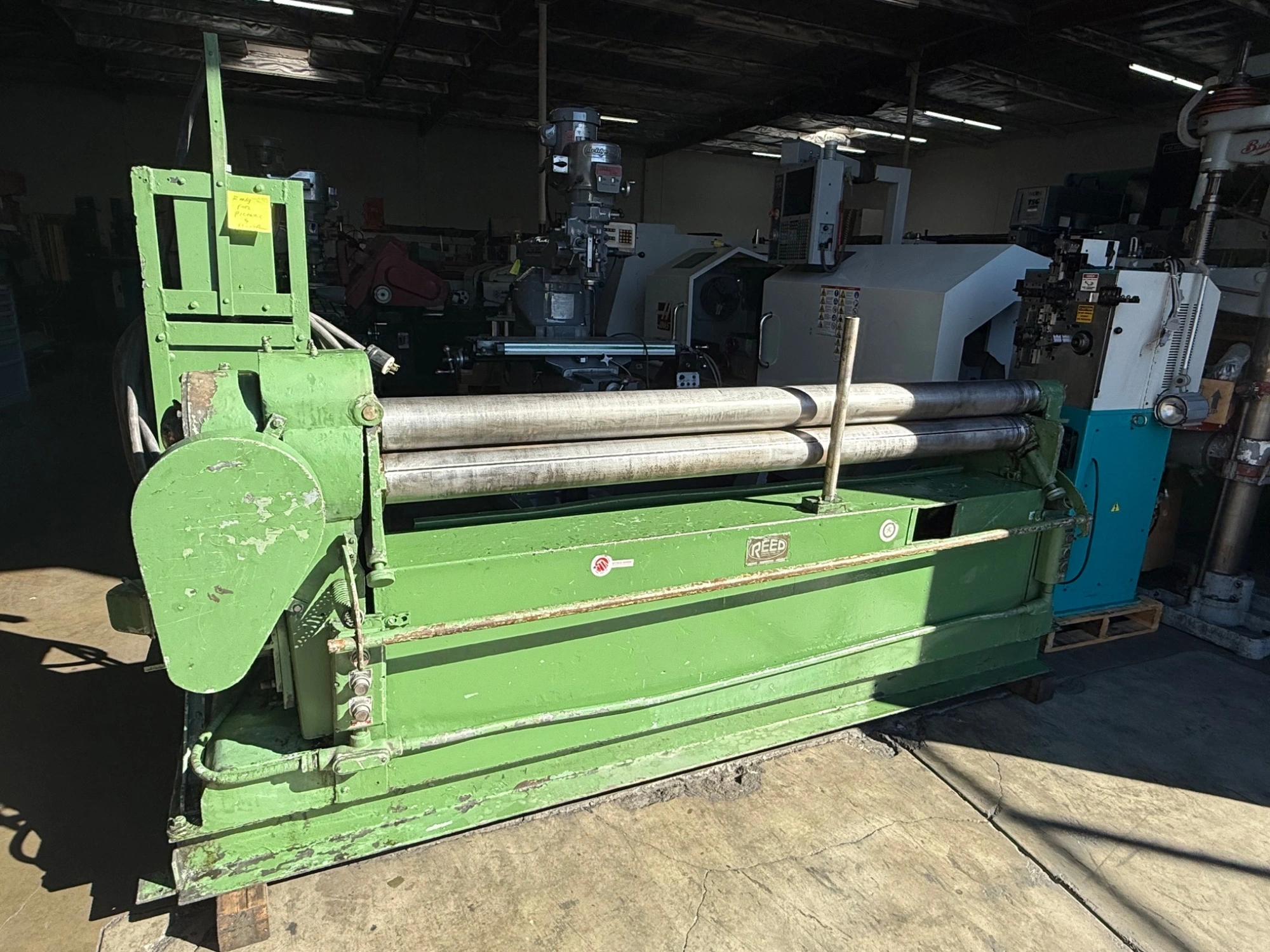

USED REED 474

REED 474 Initial Pinch Sheet Metal Roll available. Manufactured by REED, model 474, this used initial pinch roll is perfect for precise sheet metal operations. Ideal for enhancing efficiency in your metalworking tasks.

REED 474 Initial Pinch Sheet Metal Roll #7998 #1

SPECIFICATIONS:
Roll Capacity: 16 Ga. at 72"
Roll diameter: 4-1/4"
Roll length: 72"
Speeds approx.: 18 FPM
Weight approx. 6500 lbs.
Overall dimensions approx. 102" L-R x 38" F-B x 72" H

EQUIPPED WITH:
Manual drop end
Manual rear roll adjustment via hand wheel with position indicator
Manual bottom roll adjustment
