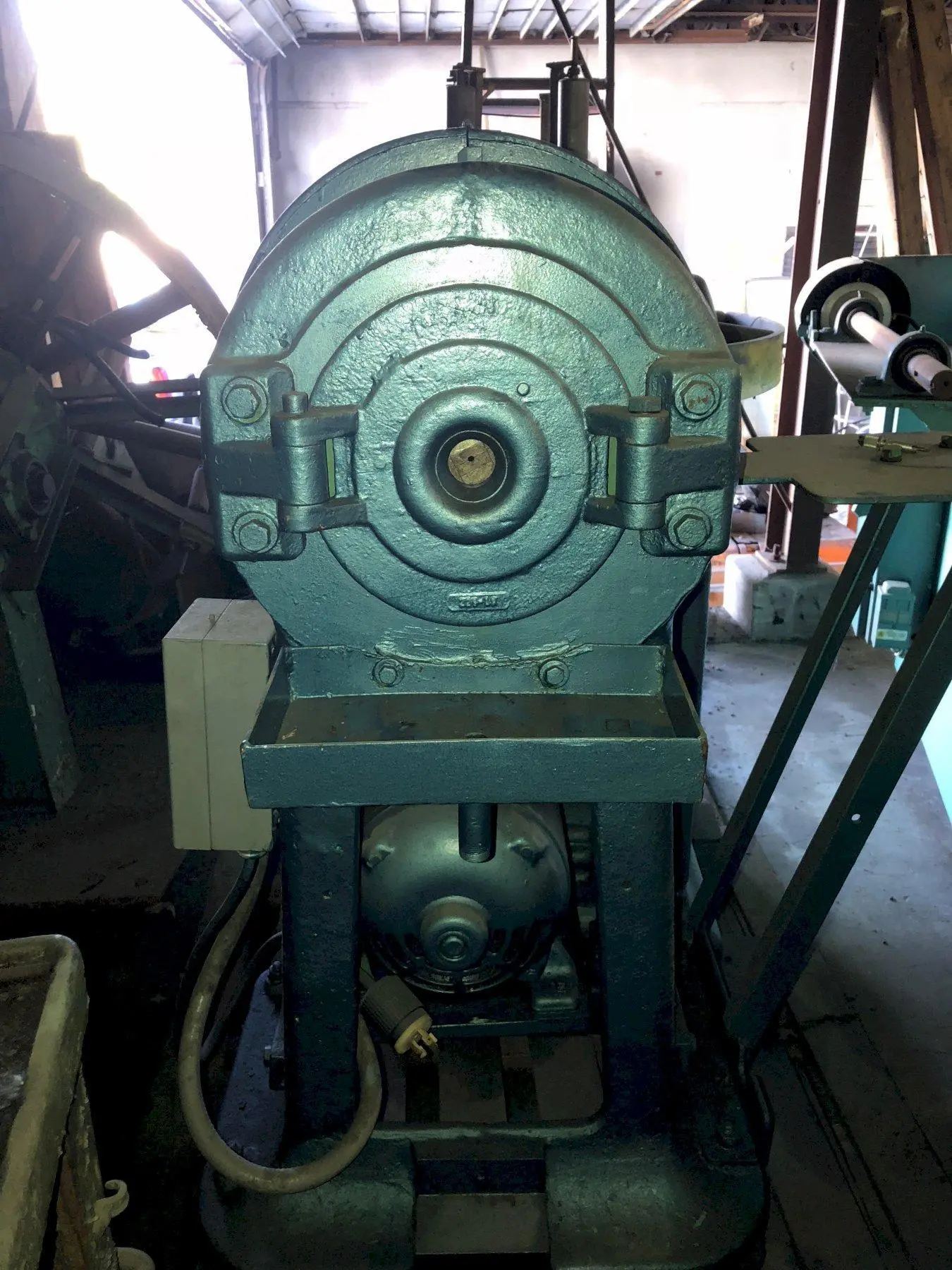

USED STANDARD MACHINERY 2A SWAGER

The Standard Machinery No. 2A rotary swager is a compact production swager used to point, taper, and reduce the diameter of wire, rod, and tubing. Rotary swaging cold-works the material rather than removing it, so grain flow follows the reduction — producing a stronger part with a smoother finish than turning or grinding, and no chip loss. The 2A is a common fit for wire drawing pointing operations, tube end forming, medical and instrument components, and short-run job shop work.

With approximately 0.250" solid and 0.750" tube capacity driven by a 3 HP motor, the 2A covers the small-diameter range where larger swagers are oversized for the work. At roughly 865 lbs it sits on a standard shop floor without special foundation work and ships on a pallet rather than requiring flatbed transport.

Specifications
Solid capacity: approximately 0.250"
Tube capacity: approximately 0.750"
Die size: approximately 2" L × 1.5" W × 1.125" H
Motor: 3 HP
Weight: approximately 865 lbs

Condition
This machine was taken from service in operating condition to the best of our knowledge. It is offered on an AS-IS, WHERE-IS basis with no warranty of any kind, express or implied, including no warranty of merchantability or fitness for a particular purpose. It has not been operated, tested, or verified by International Rolling Mills since removal from service. Photographs are for general reference and may not reflect the machine's current condition or configuration. All dimensions, capacities, and specifications are approximate and are provided for general reference only. Buyer is responsible for inspection and for confirming suitability for Buyer's intended application prior to purchase.

International Rolling Mills has supported Standard Machinery equipment for over four decades and may be able supply dies, backers, and shims, or inspect and recondition this unit prior to shipment. Contact us in Pawtucket, RI for current photos, tooling availability, and a delivered quote.
