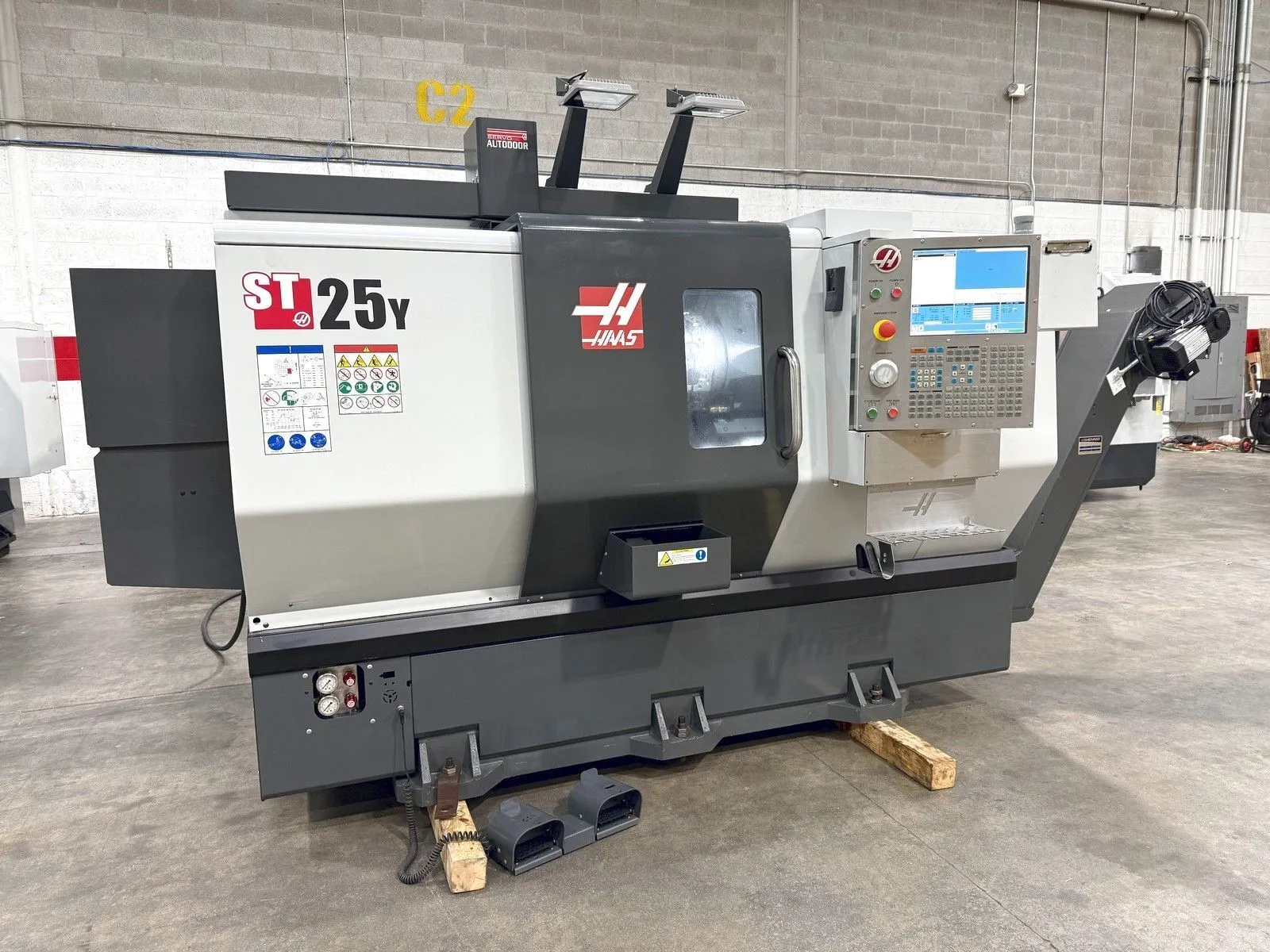

2018 Haas ST-25Y CNC Turning Center with Haas Barfeed System, Chip Conveyor, Tool Presetter, Tailstock, Live Turret, Auto Door, Parts Catcher, High Pressure Coolant, Coolant Skimmer, Remote Jog Handle, Rigid Tapping, Macros, 25+ Spindle Liners, Collet Chuck, 10" 3J Chuck, Axial Holder, Radial Holder, Misc Tooling, Manuals. Excellent Condition with 651hrs on Spindle. On Our Floor in Grand Rapids, Michigan.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 21" | 533.4 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 12" | 304.8 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 170" x 85" x 87" | 170" x 85" x 87" |
| Weight | 9000lbs | 9000lbs |
8.4" X-Axis Travel
22.5" Z-Axis Travel
11.75" Max. Turning Dia.
21" Max. Turning Length
31.75" Max. Swing
24 Station Turret
3400rpm Max. Spindle Speed
3" Spindle Bore (2.5" Bar Capacity)
30HP Spindle Motor
9000lb Machine Weight
651 Spindle Hours
Haas Barfeed System, 2015, SN: 94912, Model BAR48A
Over 25 Spindle Liners, Various Sizes
Chip Conveyor
Tool Presetter
Parts Catcher
Programmable Tailstock
Auto Door
High Pressure Coolant Pump, 300psi
Live Turret/C-Axis
Remote Jog Handle
(1) Radial Live Holder, (1) Axial Live Holder and Misc. Tooling
10" Samchully 3-Jaw Chuck in Addition to Collet Chuck and Collets
Rigid Tapping
Macros
Networking
Hard Drive
Manuals
Standard Coolant Tank with Pump(s)
