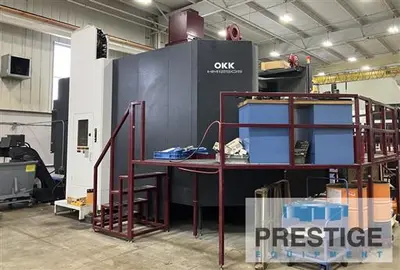

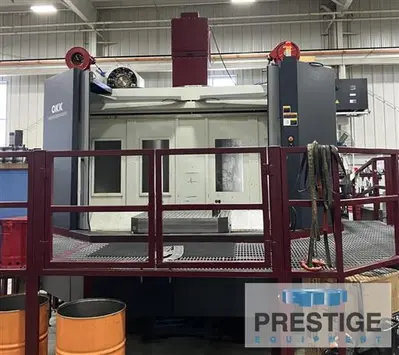

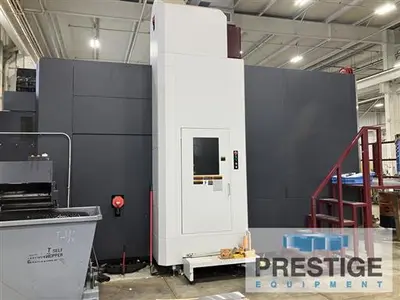

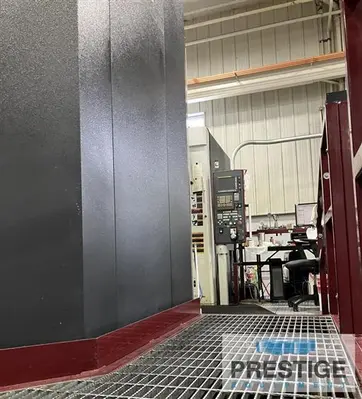

USED 2010 OKK HMC 1250S

CAPACITY:
X-Axis Travel: 66.93"
Y-Axis Travel: 55.12"
Z-Axis Travel: 48.82"
Maximum Work-piece: 77.56" x 59.84"
Number Of Pallets: 2
Pallet Size: 49.21" x 49.21"
Pallet Indexing: 0.001 Degree
Weight Capacity: 6600 Lbs.
Spindle Center to Table Top: 2.76"-57.87"
Spindle Nose to Table Center: 14.17"-62.99"
Spindle Speeds: 8,000 RPM
Spindle Taper: #50 CAT
Spindle Motor: 40 HP
Tool Changer: 60 ATC
Maximum Tool Diameter: 4.53" / 10.63"
Maximum Tool Length: 23.62"
Maximum Tool Weight: 55 lbs
Rapid Traverse, (X,Y & Z): 1889 IPM
Machine Weight: 72,000 lbs

CNC CONTROL OPTIONS:

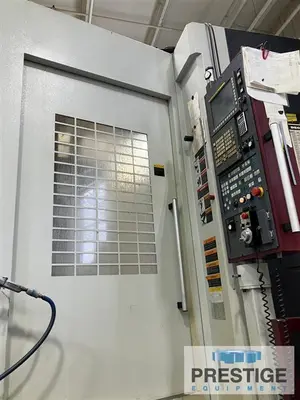

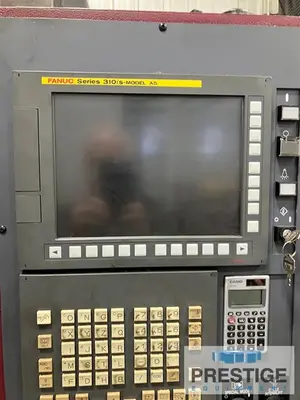

Fanuc 310iS-A 4-Axis CNC, Graphic Display, 10.4" Color TFT:
USB Port, PC/MCIA Interface:
Program Restart:
Stored Pitch Error Compensation:
Spindle Orientation:
Inch/Metric Conversion:
Canned Cycles:
Automatic Corner Override:
48 Pairs of Additional Work Coordinate System:
Cutter Compensation C:
Tool Offset Memory C:
Background Editing:
Macro Executor:
Custom Macro B:
PMC Function:
Stored Stroke Check 2, 3:
HQ Control:
Helical Interpolation:
512 KB Program Memory:
Programmable Mirror Image:
120 Registered Programs:
200 Sets of Tool Offsets:
128 Pairs of Tool Life Management:
Digital Servo Function:
Controllable Axes Expansion:
Second Reference Point Return:

Equipped With:

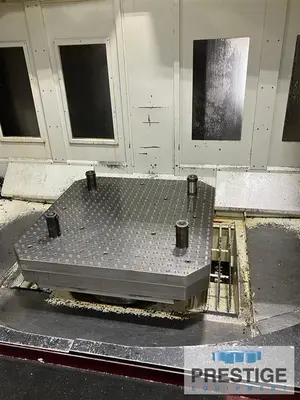

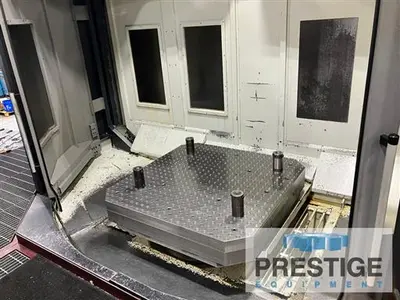

(2) 49.21" x 49.21" Pallets
Full B-Axis Pallet Contouring/Rotation

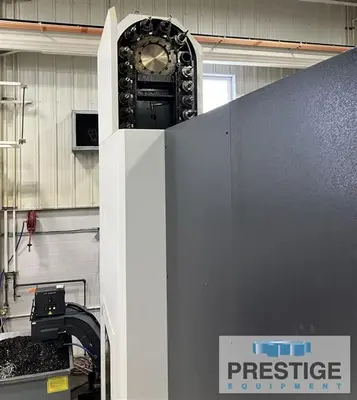

60-Position Automatic Tool Changer
Through Spindle Coolant (1000 psi)
Blum Laser Auto Tool Length Measurement & Tool Breakage Detection
Rigid Tapping
Renishaw Touch Probe
Manual Pulse Generator
Dual Chip Augers

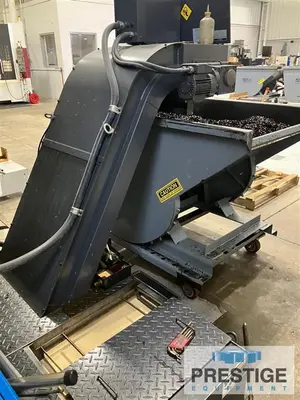

Hakusan Chip Conveyor (Left Rear Exit)

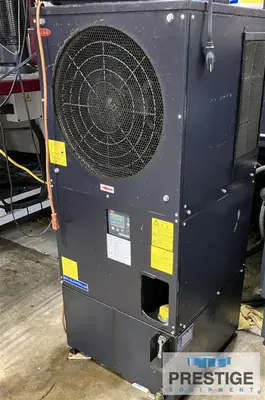

Spindle Chiller Unit
Multi-Tap Transformer
Three Color Tower Light
B-Axis Linear Scales
Dual Position Feedback

Features:

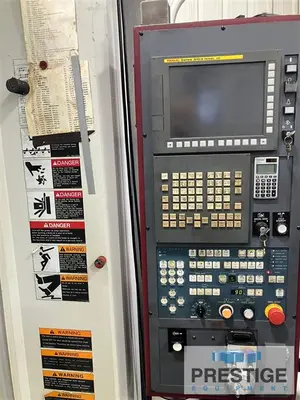

Fanuc 310iS-A CNC Control
Large Work Envelope
49.21" x 49.21" Pallets
Full B-Axis Contouring
Through Spindle Coolant
Probe
