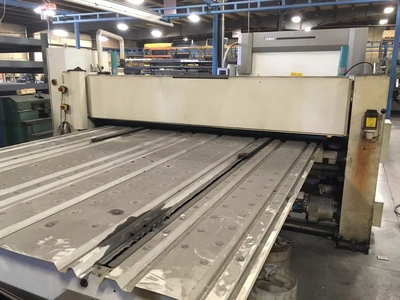

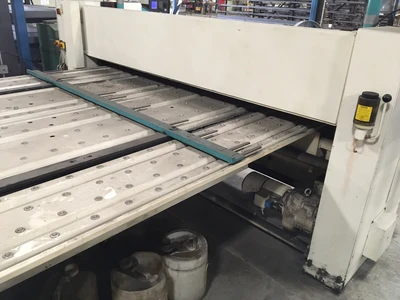

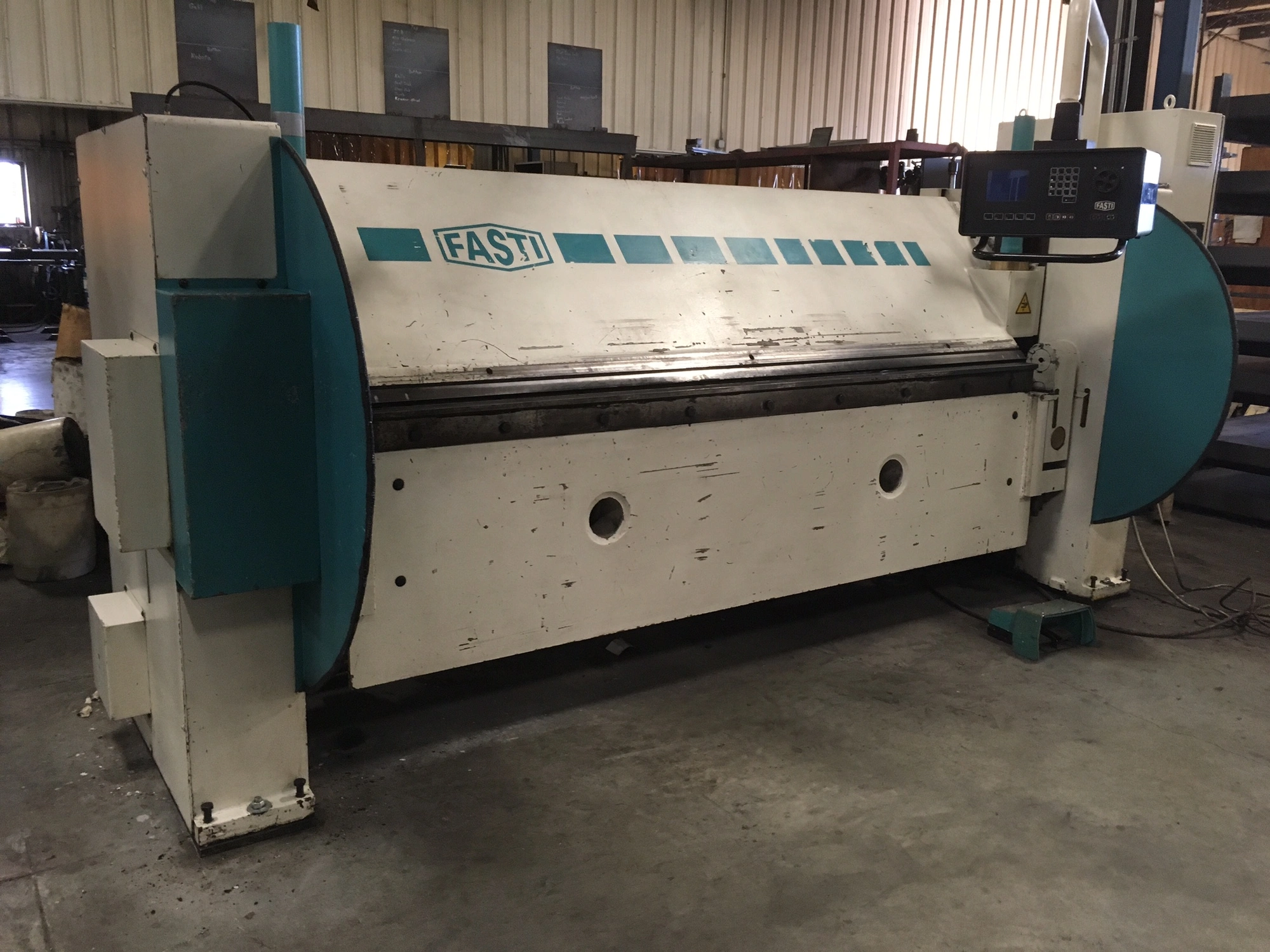

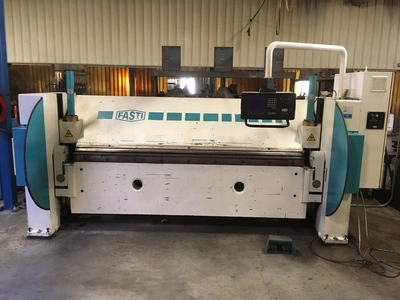

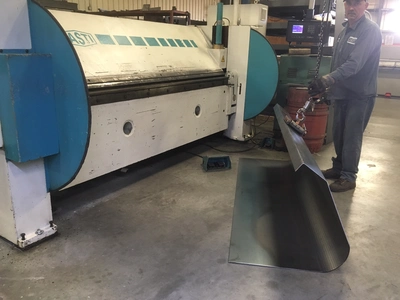

USED 1999 Fasti 212-25-6

100" Width 0.236" Thick Fasti 212-25-6 FOLDING MACHINE

8' x 1/4" FASTI FOLD APRON BRAKE

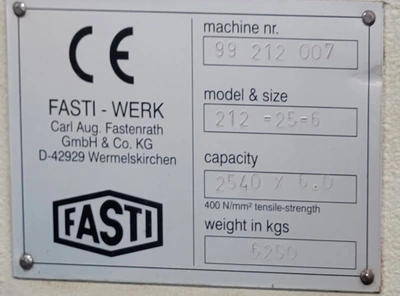

MODEL 212-25-6        S/N 99212007        NEW 1999

WORKING LENGTH ............... 100"

MAX SHEET THICKNESS .......... .236

CLAMPING BEAM STROKE ......... 13.77"

ANGLE ADJ. ................... 0-180 DEGREES

LOWER BEAM ADJUSTMENT ........ 3.15"

FOLDING BEAM ADJUSTMENT ...... 3.15"

MAXIMUM CLAMPING BEAM SPEED .. .71"/sec.

MAXIMUM FOLDING BEAM SPEED ... 22 deg./sec.

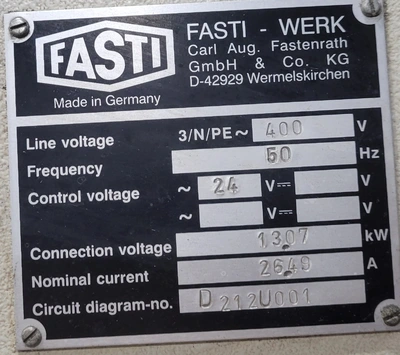

DRIVE MOTOR OUTPUT ........... 13.5 HP

WEIGHT: 13,800 lbs.

FEATURES:

- WELDED ALL-STEEL CONSTRUCTION

- LOW-MAINTENANCE DESIGN

- OPTIMAL PROFILE OF CLAMPING BEAM (45 DEGREES)

- TWO-SIDED CLAMPING BEAM DRIVE, RACK AND PINION

- TWO-SIDED CLAMPING BEAM DRIVE AND MEASUREMENT

- NO SHIMMNG REQUIRED FOR OFF-CENTER LOADS

- PATH MEASURING ON CLAMPING BEAM

- OVERLOAD PROTECTION

- FREE PASSAGE CUT-OUTS ON BOTH SIDES OF CLAMPING BEAM

EQUIPPED WITH:

- CNC CONTROL

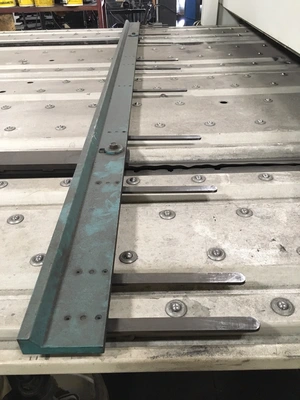

- RECTANGULAR SHAPED BACK GAUGE WITH .250" TO 78.75" and 39.6" to 118"

FOR MORE INFORMATION: Call Rick at 973-497-7560
