60" Centers, Steady Rest, Flat Bed, Gap Bed Design, 3 Jaw Chuck, Tailstock, 8 Position Turret, Mist Collector, The ML Series of combo lathes can be run as manual, teach, or full CNC
| size | 10" Chuck | 10" Chuck |
| Swing | 18.74" | 476 mm |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 9.4" | 238.76 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Milltronics 8200) | CNC (Milltronics 8200) |
| Weight | 7660 | 7660 |

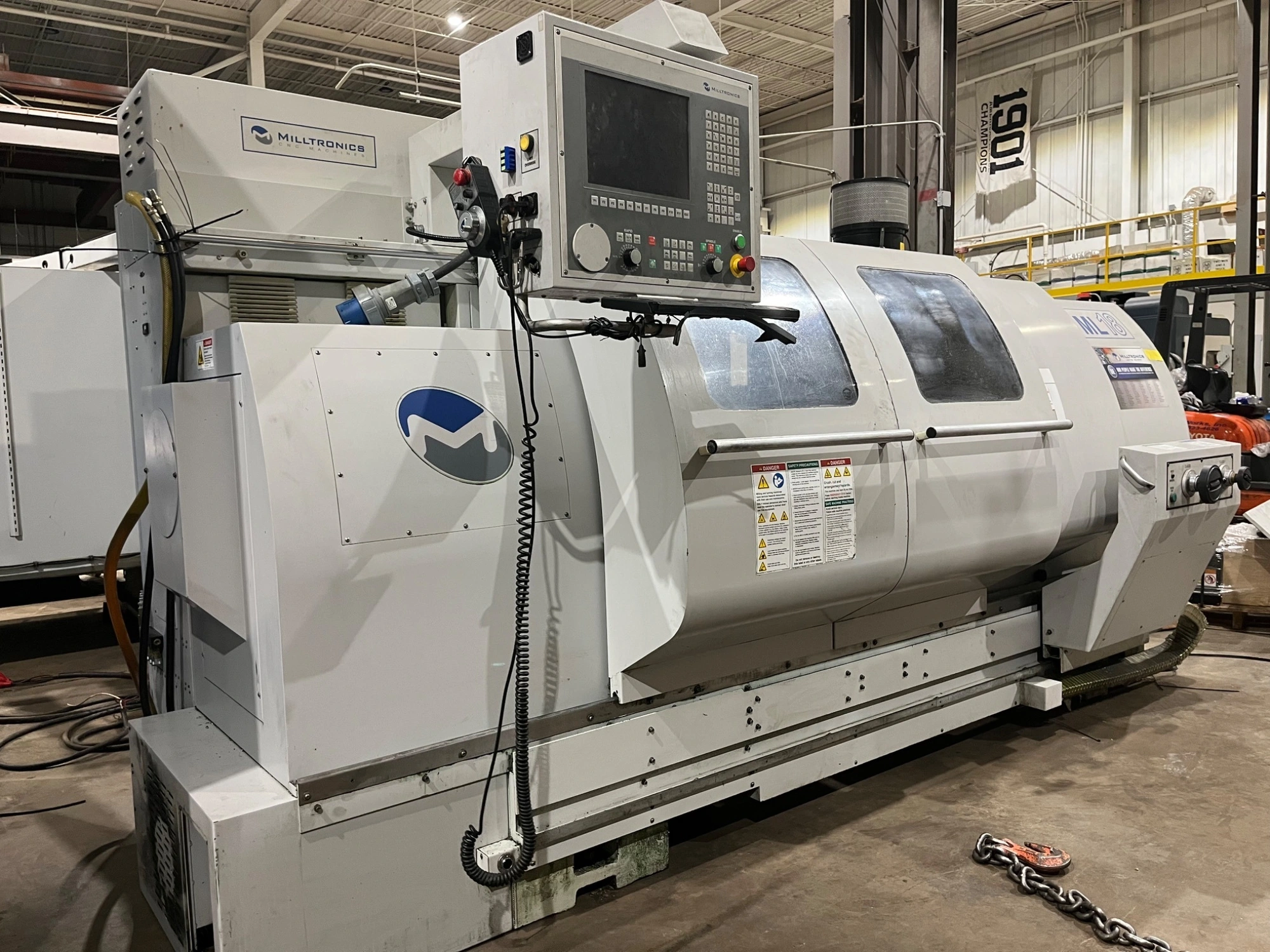

Milltronics ML-18 G Series H Flat Bed CNC Lathe (2014)
Swing Over Bed: 18.74"
Swing Over Cross Slide: 9.4"
X-Axis Travel: 10"
Bed Width: 14"
Maximum Swing over: 12.75" Gap 27.9"
Center Distance: 60"
Spindle Nose / Bore / Bar Capacity: D1-6"/2.56" / 2.04"
Spindle Speed: 4,500 RPM
Turret Type: 8 Stations
Spindle Motor: 15 HP
Tailstock Quill Dia.: 2.55"
Tailstock Quill Travel 6"
Rapid Traverse Rates 500 IPM
Machine Dimensions 120" x 83"
Machine Weight 7,600 lbs
Current electrical arrangement, 220 3 phase 60 cycle
Milltronics 8200 Cnc Control ( PC-based user-friendly conversational programming with high-speed G-code processing )
60” Centers
Heavy Duty Tailstock
Manual Pulse Generator/Remote Jog Hand Wheel
Auto Strong N – 210 10" 3 Jaw Hydraulic Chuck
8 Position Turret
Royal Filter Mist Model Fx 575 Miss Collector
Coolant Filtration System
Steady Rest
The ML Series of combo lathes can be run as manual, teach, or full CNC
