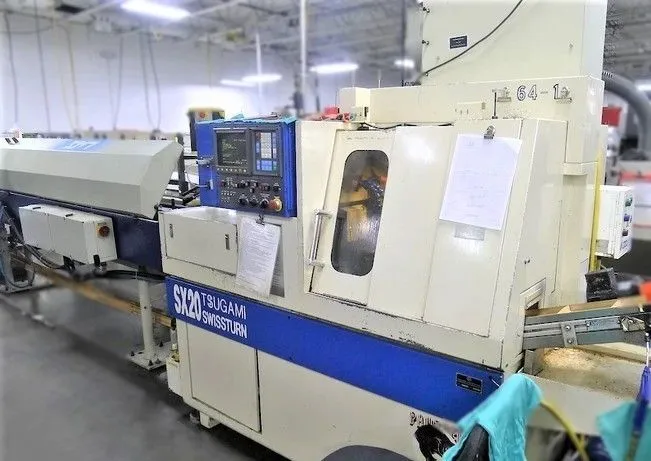

TSUGAMI SX-20 CNC Swiss Lathe, New in 1997.
FMB Mini Turbo Barfeed (20ft)
Live Tool
| Capacity | 0.812" | 20.625 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| Main Spindle Indexing | 5 Degree | 5 Degree |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 72" x 46" x 67" | 72" x 46" x 67" |
| Weight | 5500 | 5500 |
General Specifications:
Turning Diameter: 0.812"
Slide Travels (Z1 Axis): 8.21"
Z2 ID Tool Slide In and Out: 7.88"
Live Tool Positions on Gang.: (3)
Stick Tool Pos. on Gang: (7)
Front Work (ID Sleeve): (4)
Back Working Positions: (3)
Main Spindle Speed: 200-8,000
RPM Spindle Motor: 5 HP
Main Spindle Indexing: 5 Degree
Back Spindle Speed: 5000
RPM Driven Tool Speed: 4000
RPM Driven Tool Drive Motor Rating: 5/8
HP AC Sub-Spindle Capacity: 0.812"
Sub Spindle Motor: 1.5 HP Machine
Dimensions: 72" X 46" X 67"
Machine Weight: 5500 Lbs.
Fanuc CNC Control
FMB Mini Turbo Barfeeder (20 Feet)
Live Tool
