| size | 24.8" X 24.8" Pallet | 24.8" X 24.8" Pallet |
| X | 35.9" | 911.86 mm |
| Y | 31.8" | 807.72 mm |
| Z | 29.4" | 746.76 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| Taper | 50 | 50 |
| Pallet-W | 24.7" | 627.38 mm |
| Pallet-L | 24.7" | 627.38 mm |

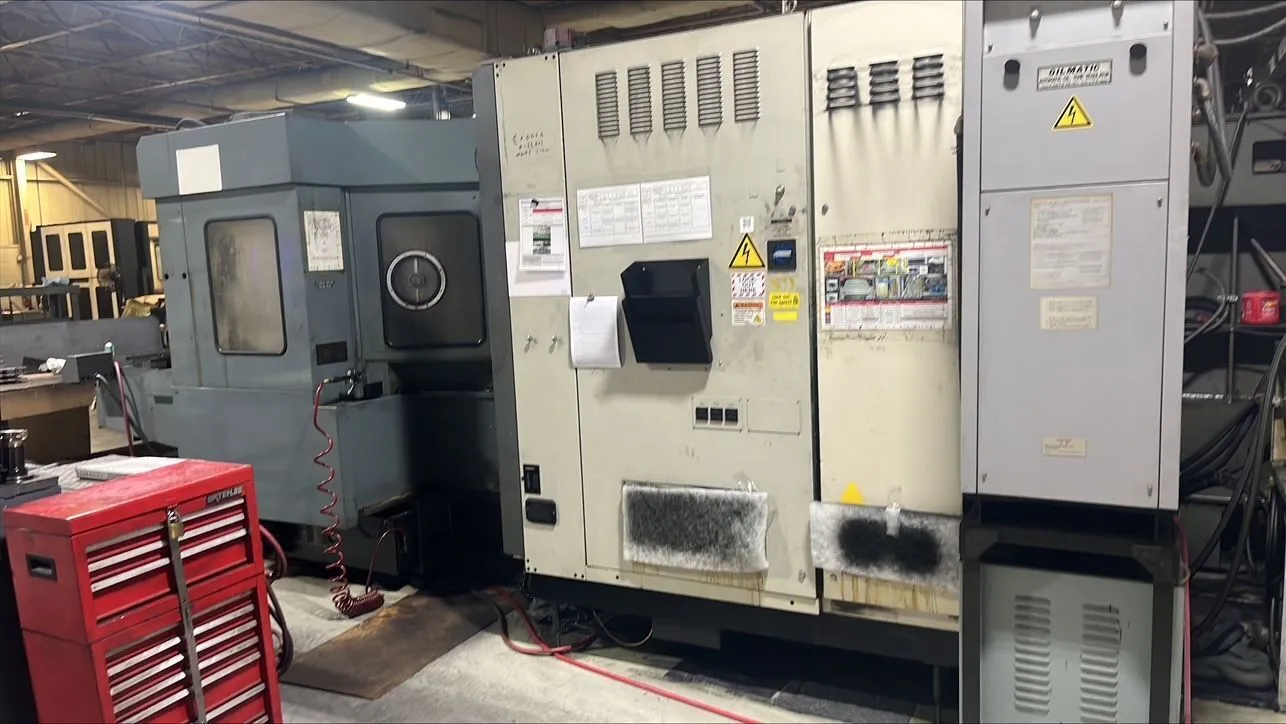

Makino Model MC-86 4-Axis CNC Horizontal Machining Center
Table Size: 24.8" X 24.8"
X-Axis Travel: 31.9"
Y-Axis Travel: 25"
Z-Axis Travel: 25"
Table Indexing: 360,000 Degrees
Spindle Taper: CT 50
Spindle Speeds: 4,000 RPM
Spindle Motor: 15/20 HP
Spindle Center to Table Top: 3.9" to 28.9"
Spindle Nose to Pallet Center: 7.9" to 32.8"
