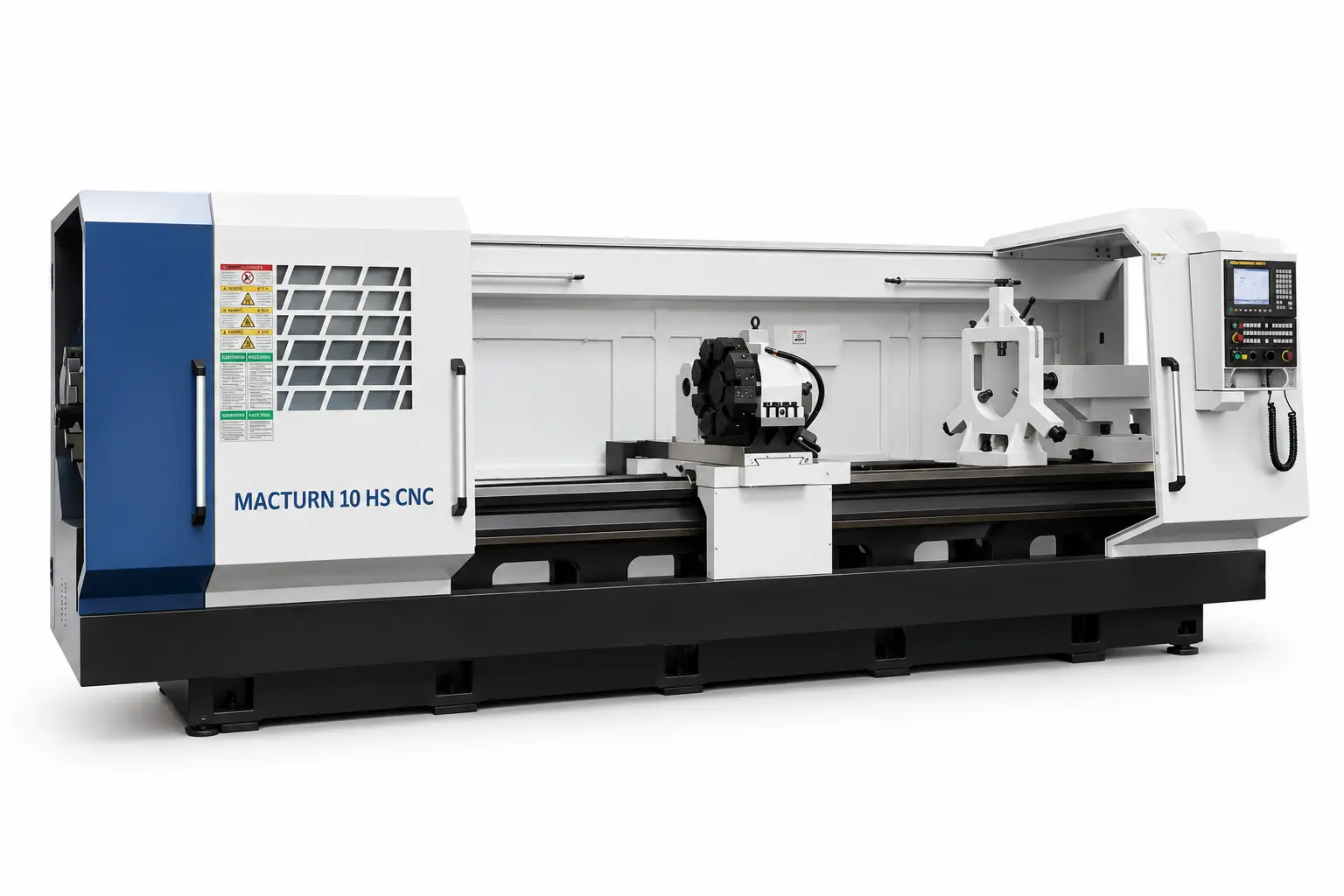

NEW Macturn 10 HS CNC
Overview
Description
Macturn 10 Hollow Spindle CNC lathe, perfect for oil field and hollow spindle applications, Hydraulic workshops.
8 Station turret
Fanuc oi-TF Controller equipped
with manual guide i function & FANUC servo main motor -15KW. Suitable for thread repair.
Delivery 75- 90 days varies according to factory loading.
Specifications
| Swing | 31.496" | 800 mm |
|---|---|---|
| Centers | 118.1" | 2,999.7 mm |
| Spindle Bore | 10.039" | 255 mm |
| Power | 20.1 hp | 15 kW |
| RPM | 255 RPM | 255 RPM |
| Control | CNC | CNC |
| Dimensions | 208.661x74.8032x74.8032 | 208.661x74.8032x74.8032 |
| Weight | 6.7 | 6.7 |
Max.Swing over bed:800mm
Max. Swing over cross slide:530mm
Max.work piece of length:3000mm
Max. processing length at once:2750mm
Guideway width:550mm
Spindle bore:255mm
Max. load capacity:3T
Spindle center height:400mm
Pipe threading range:Φ50-250mm
Mode of spindle speed:Two -speed frequency
conversion, infinitely variable speed within the gear
Spindle motor power:15KW
Max.traverse of X/Z:X:420mm/Z:2750mm
X/Z rapid traverse:4000/6000mm/min
Tailstock quill diameter:100mm
Tailstock quill travel:250mm
Tailstock quill taper:MT5
Tool shank size:32*32mm
Turret:8 -station servo turret
Chuck:K72 -630 4-jaw chuck
Overall dimension:5300 ×1900×1900mm
Machine Weight:6.7T
Equipped With
Turret:8 -station servo turret
2 x Chuck:K72 -630 4-jaw chuck
Steady rest/Follow rest/Work Lights
415V 50HZ+Multi -tapping Transformer
