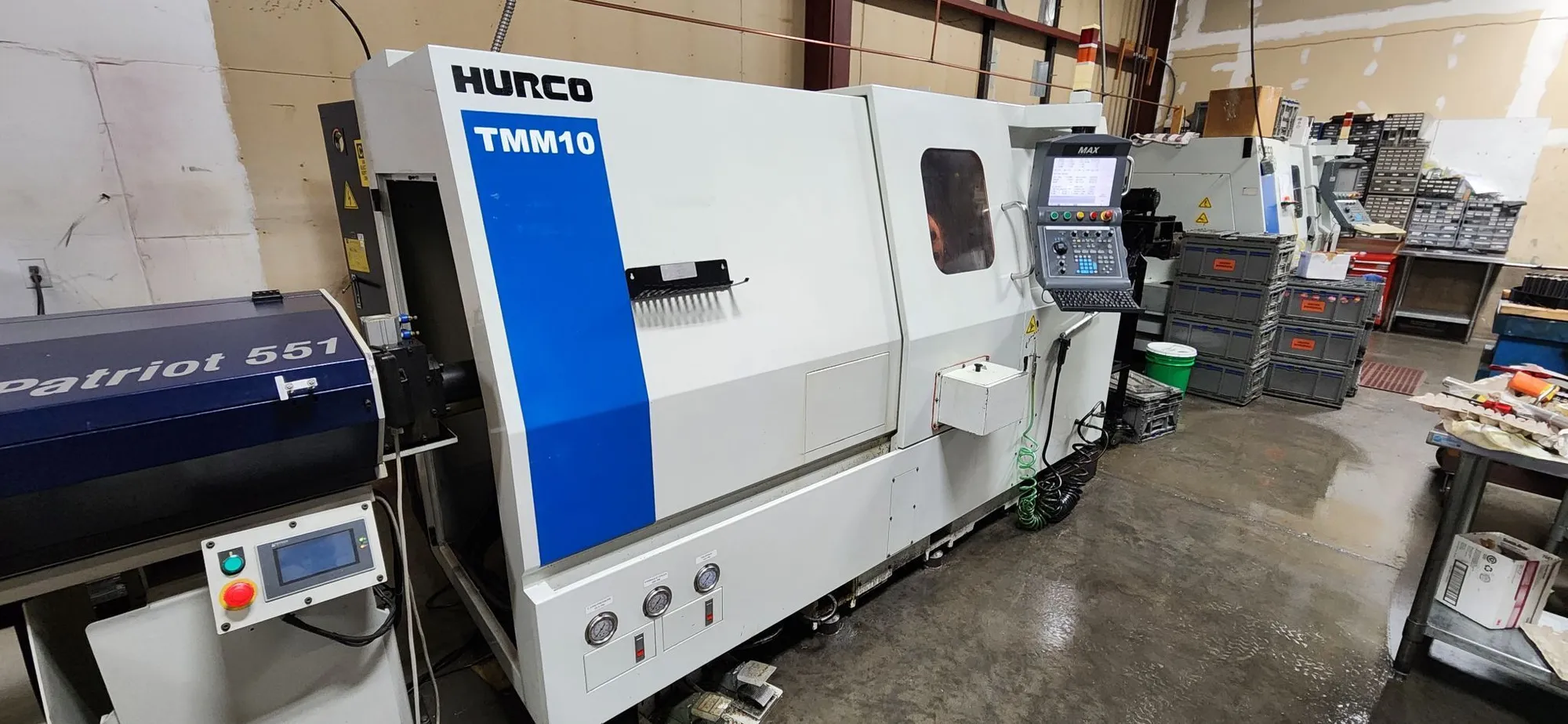

USED 2006 HURCO TMM-10

Distance Between Centers 27.4 in (695 mm)
Swing Over Bed Diameter 22.9 in (582 mm)
Swing Over Cross Slide Diameter 15.8 in (402 mm)
Max. Turning Diameter 11.6 in (295 mm)
Max. Turning Length 27.6 in (700 mm)
Max. Bar Capacity 3.07 in (78 mm)
X, Z Axis Travel 9.8 x 29.5 in (250 x 750 mm )
SPINDLE
Max. Spindle Speed 3000 rpm
Max torque high gear 350 lb./ft @ 360 RPM (474 Nm @ 360 RPM)
Spindle Power 24 HP (18 kW)
Spindle Nose A2-8
Chuck Diameter 10 in (254 mm)
TURRET
Tool Type VDI 40
Tool Capacity 12 Stations
Max boring bar diameter 1.5 in (40 mm)
Turret Index Time-Adjacent .31 seconds
Turret Index Time-Furthest .82 seconds
LIVE SPINDLE
Live Tooling Spindle Speed 4000 rpm
Live Tooling Spindle Power 8.85 hp (6.6 kw)
Live Tooling Spindle Max Torque 31 ft. lbs. (42 Nm)
FEEDRATES
Rapid Traverse X,Z Axis 750, 945 in/min (19, 24 m/min)
SIZE
Max. Operating Floor Space 201.6 x 125 in (5,120.1 x 3,179.3 mm)
Machine Height 85.4 in (2,169 mm)
Machine Weight 11,023 lb. (5,000 kg)
Parts catcher dimensions 8.3 x 5 x 3.5 in (210 x 126.7 x 88 mm)

HURCO MAX CNC CONTROL
EDGE PATRIOT 551 BARFEED
10" 3-JAW CHUCK
12 POSITION TURRET WITH LIVE TOOLING
C-AXIS SPINDLE POSITIONING
TAILSTOCK
CHIP CONVEYOR
COOLANT SYSTEM
1 AXIAL LIVE HOLDER
! RADIAL LIVE HOLDER
MISC TOOLING
