(2) EA12V machines mated to a 3R Workmaster Robot that feeds electrodes and workpieces to both machines.
| X | 15.7" | 398.78 mm |
| Y | 11.8" | 299.72 mm |
| Z | 11.8" | 299.72 mm |
| Table Size-W | 19.6" | 497.84 mm |
| Table Size-L | 27.5" | 698.5 mm |
| Worktank Inside Dimensions | 33.5 x 23.5 x 14" | 33.5 x 23.5 x 14" |
| Max. Workpiece Weight | 1543 Lbs. | 1543 Lbs. |
| Drop Tank | Yes | Yes |
| C-axis | Yes | Yes |
| Chiller Included | Yes | Yes |
| Control Type | Mitsubishi 64-Bit (FP80V) | Mitsubishi 64-Bit (FP80V) |
| Screen Size | 10 | 10 |
| Program Input Methods | Keyboard, Floppy, Ethernet | Keyboard, Floppy, Ethernet |
| Tooling Available for Purchase | Yes | Yes |

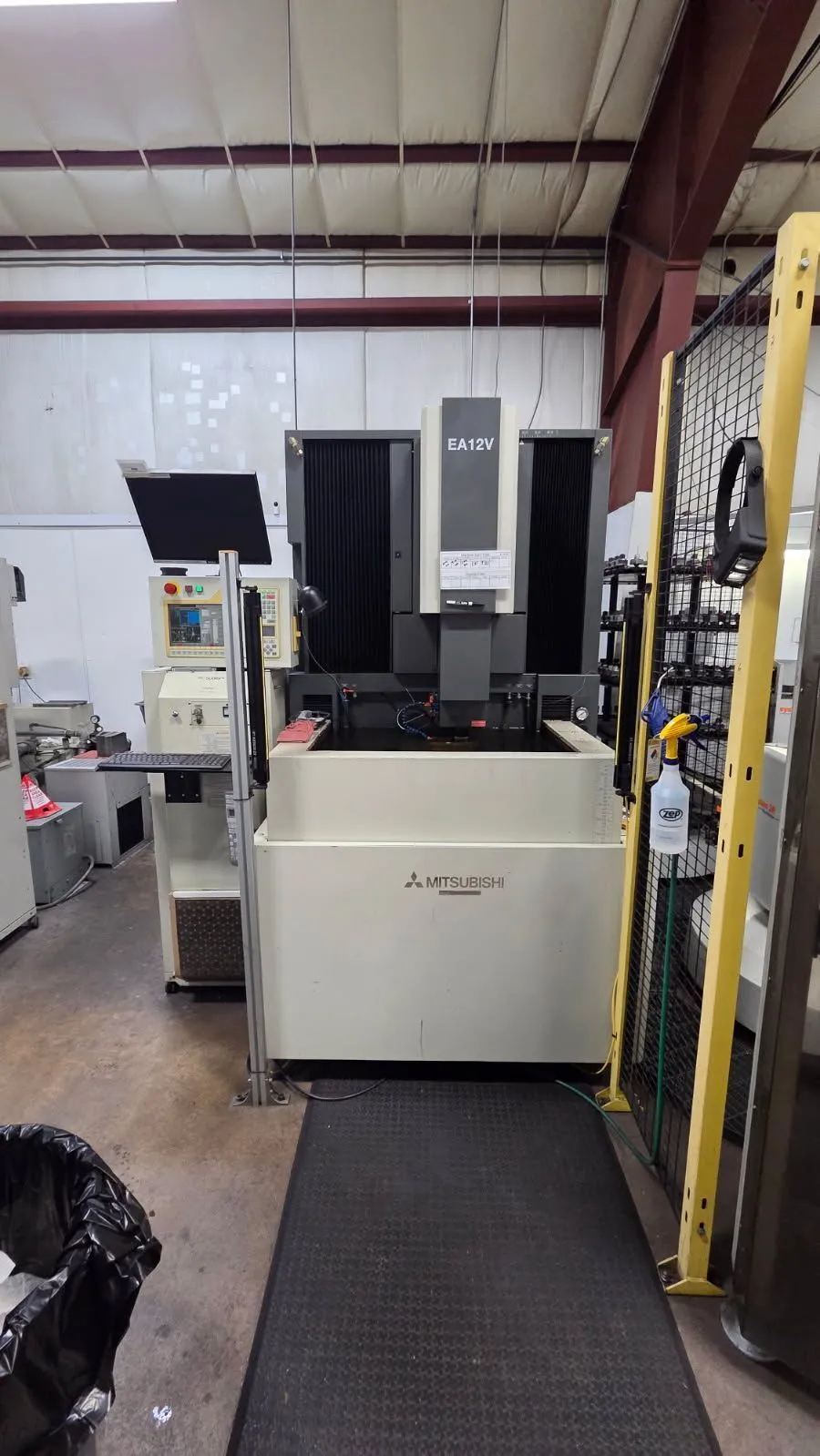

(2) Identical 2007 Mitsubishi EA12V machines
(1) 3R Workmaster robot with Dynafix bookshelf and Macro Combi rotary magazine
- 300 positions for electrode holders
- 10 positions for Dynafix pallets
