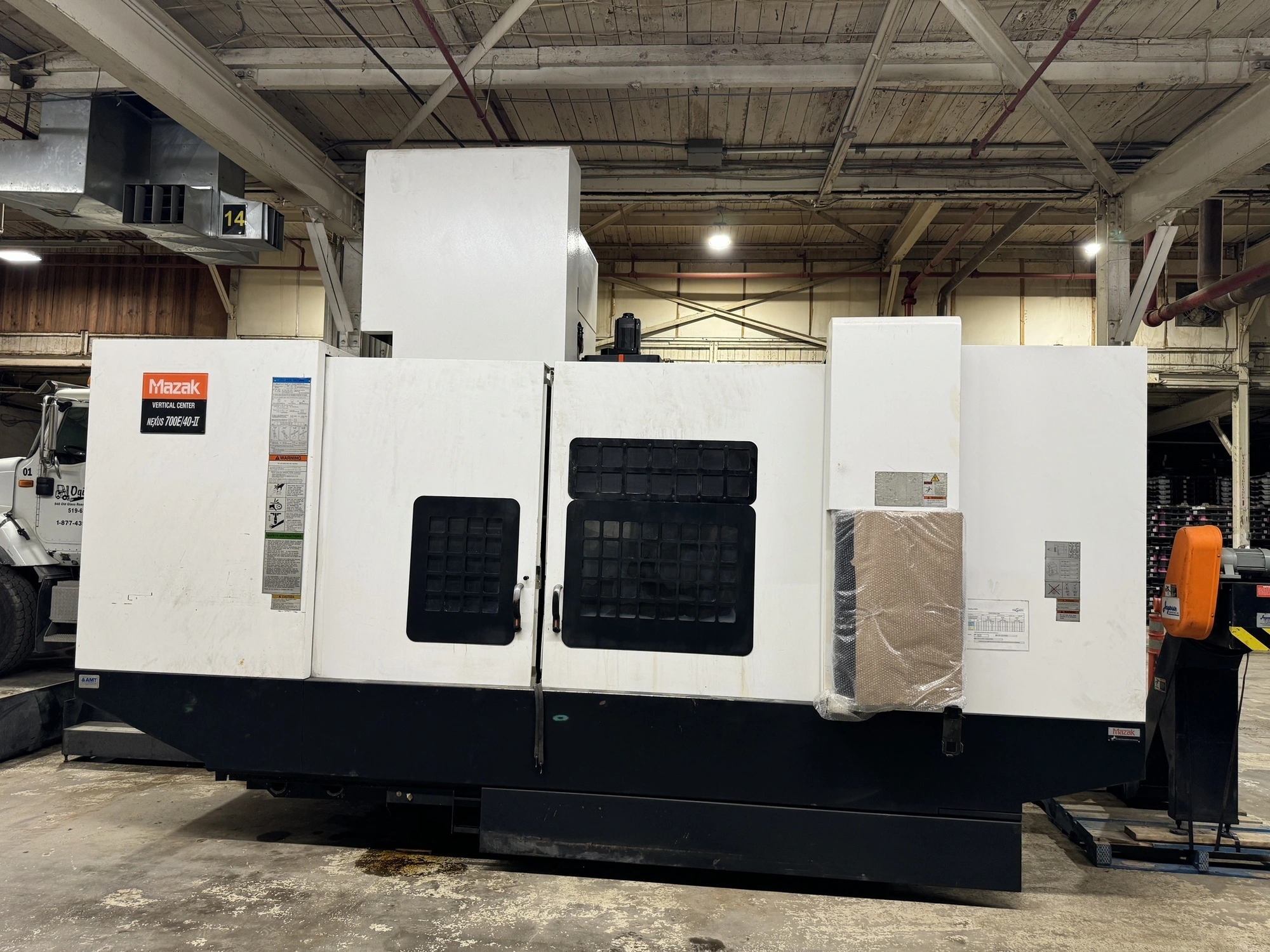

USED 2013 MAZAK NEXUS VCN 700E/40-II
Overview
Specifications
| Table-L | 80" | 2,032 mm |
|---|---|---|
| Table-W | 27.5" | 698.5 mm |
| X | 80" | 2,032 mm |
| Y | 27.6" | 701.04 mm |
| Z | 28.3" | 718.82 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| Power | 25 hp | 18.6 kW |
| Taper | CAT#40 | CAT#40 |
| # ATC | 48 | 48 |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
| Dimensions | 198” X 139” X 140” (LWH) | 198” X 139” X 140” (LWH) |
| Weight | 26,500 LBS | 26,500 LBS |
Equipped With
Mazak Matrix Control
Remote Pulse Generator
Renishaw OMP-60 Touch Probing
Renishaw TS27R Tool Length & Diameter Setter
213 PSI Thru Spindle Coolant
Misc. Tool Holders - Qty. 25
Fixture Plate on Table - 80” x 27.5” x 3” with T-Slots (2) and tapped holes
Digital Manuals on CD
Built in Transformer for 575 Volts
