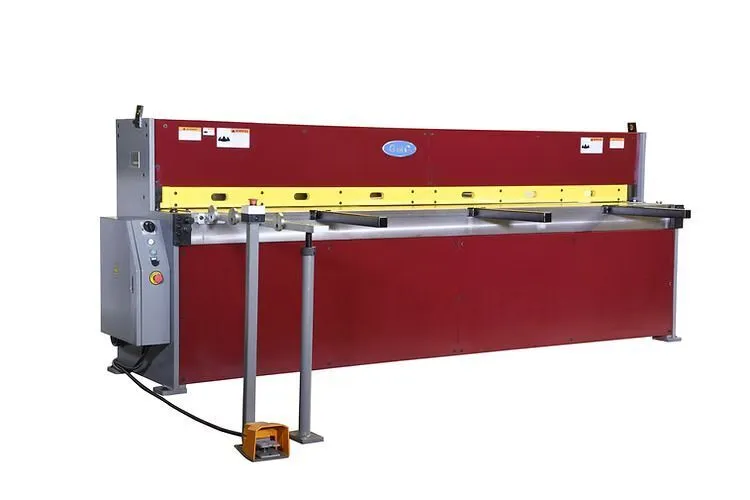

NEW GMC HS-0610MD

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Cutting Capacity:
Mild Steel 6' x 10Ga.
Stainless Steel 6' x 14Ga.
Soft aluminum 6' x 1/4" Ga.
Minimum Capacity 24 Ga.
Blade Length 6' 6"
Strokes per minute adjustable 16-20
Throat depth 16"
Worktable height 30 1/2"
Front support arm 24"
Back gauge 26"
Blade Rake Angle 1.5 Degree
Oil Tank Capacity 21 Gal
Main Motor 5 1/2 HP Prewired: 220/3-Phase Optional: 440V 3-Phase
Machine Weight 4,150 lbs.
Machine Dimensions 98" x 35" x 52"

26” manual back gauge with inch/metric dual scale & one side operated hand wheel
60” long squaring arm with inch / mm scale
2 each 24” front support arms
2 each 14” Side gauges with inlaid inch/metric dual scale
Spring independent hold-downs
Full length finger guard
Removable safety foot pedal control
One set of blades
