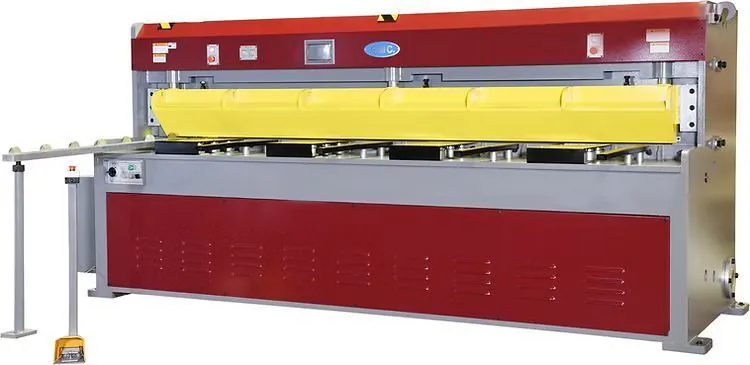

NEW GMC HS-1025E

DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Cutting capacity:
Mild steel 10’ x ¼”
Stainless steel 10’ x 10 Ga.
soft aluminum 10' x 3/8"
min. thickness 20Ga
Blade length 10'2"
Strokes per minute 10-12
Throat depth 18"
Worktable height 34 1/2"
Front support arm 24"
NC Back Gauge: 36" go to NC powered back gauge with touch screen
Blade rake angle 2 degree
Oil tank cap. 53 Gal.
Main Motor 20 HP, 220V/70A, 3 Phase 440V/35A, 3 Phase (OPTIONAL)
NC Back Gauge: 1 HP, 220V, 3 Phase
Machine weight 13,850 LBS
Machine dimmensions 181" x 117" x 65" (with back gauge and squaring arm)

36” go to NC back gauge w/ touch screen
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
4 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
