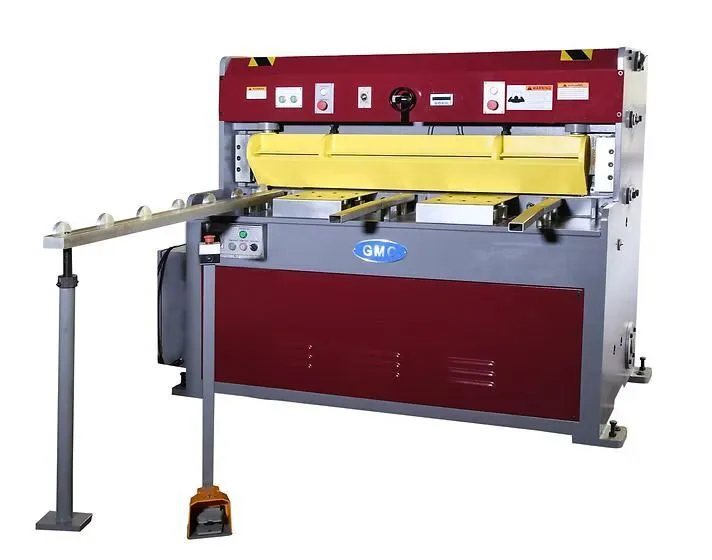

NEW GMC HS-0425E

Cutting capacity:
Mild Steel: 4' x 1/4”
Stainless Steel: 4' x 10 Ga.
soft aluminum: 4' x 3/8"
min. thickness: 20Ga
Blade Length: 4'4"
Strokes Per Minute: 12-20
Worktable Height: 34 1/2"
Front Support Arm: 24"
Backgauge: 24" SIKO Powered Backgauge
Blade Rake Angle: 2 degree
Oil Tank Capacity: 17 Gallons
Main Motor: 7.5 HP (3 Ph.) 220V/30A 440V/15A (optional)
Backgauge Motor: 1 HP 220V/440V (3 Ph.)
Machine Weight: 5,350 LBS
Machine Dimensions: 74" x 86" x 63"

24” German SIKO Front Operated Power Back Gauge
with micro adjustment , accuracy 0.004” inch/metric digital display

1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
