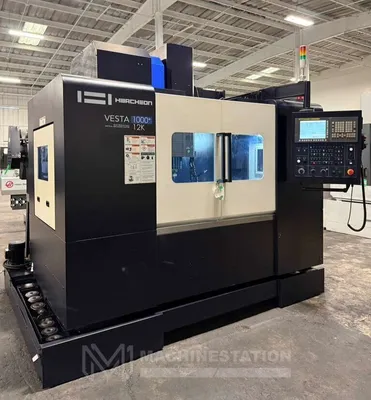

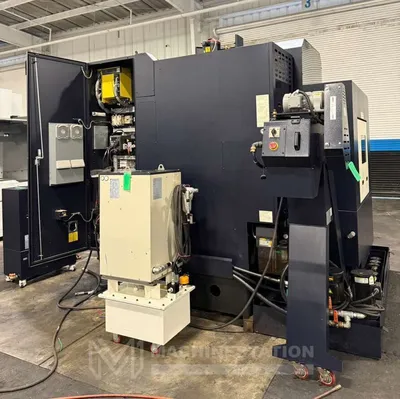

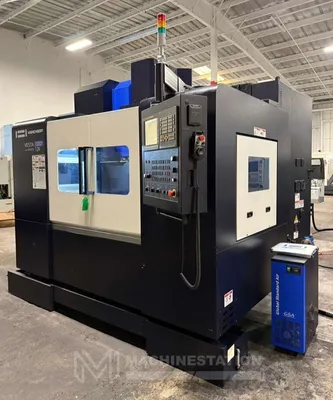

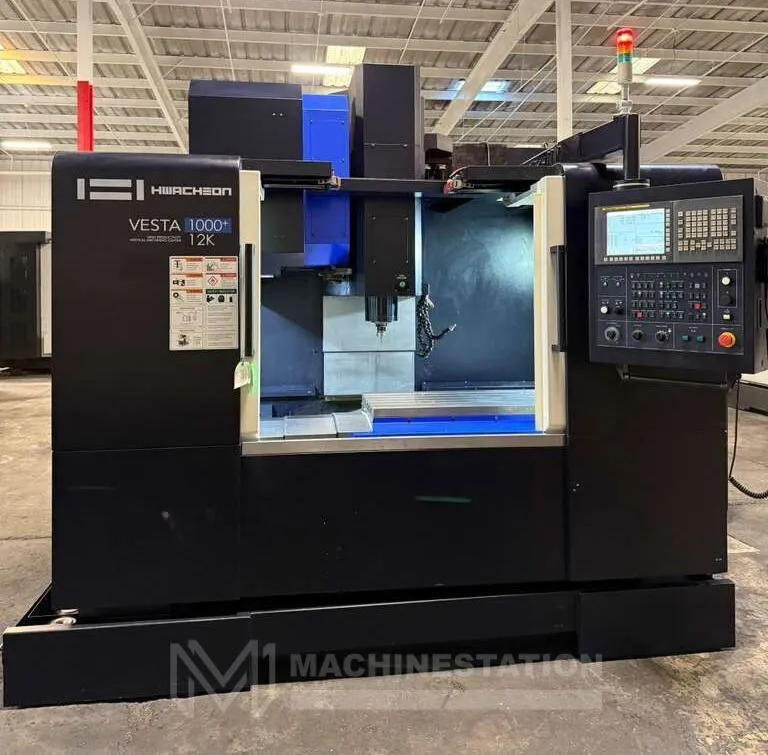

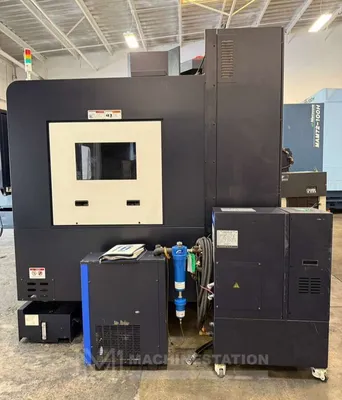

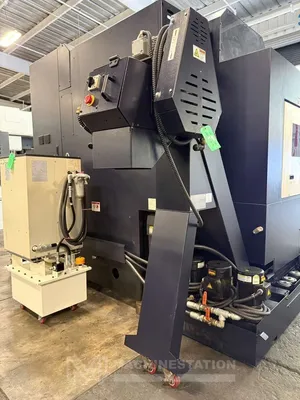

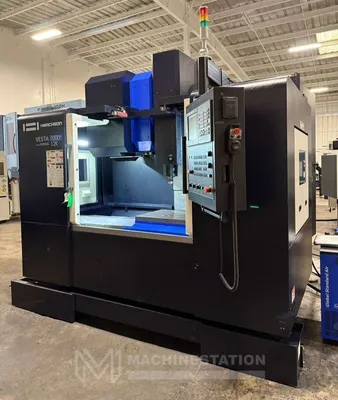

USED 2019 HWACHEON VESTA 1000+

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

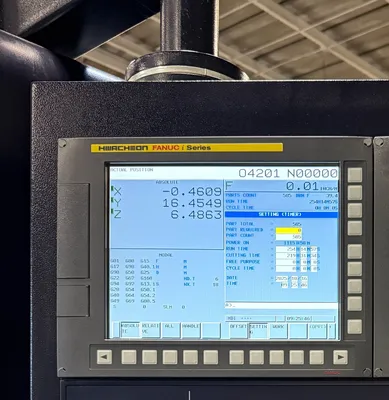

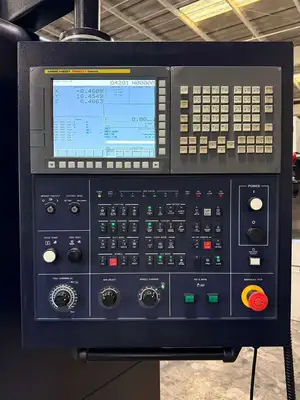

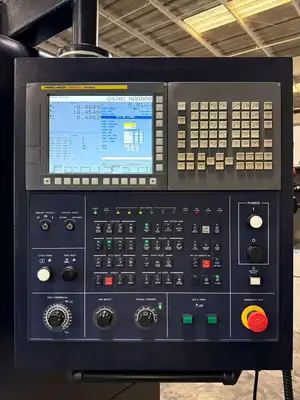

Hwacheon Fanuc i-Series CNC Control
219 Hours Only Cutting Time
Linear Way Construction
PCMCIA Card Slot, Ethernet, RS-232C Port
Rigid Tapping

Travels:
X-Axis: 39.37″
Y-Axis: 21.65″
Z-Axis: 19.69″
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Cutting Feed Rates: 945 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.12″ – 24.8″

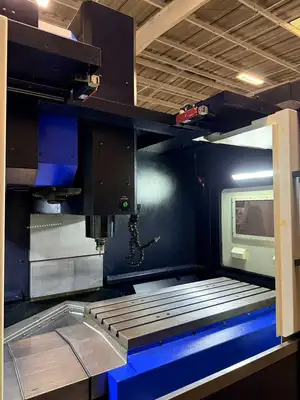

Table:
Length: 44.49″
Width: 19.76″
Number of Std T-Slots: 5
T-Slot Width: 0.71″ x 3.15″
Max Weight on Table: 1543 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Tool Weight: 17.64 lbs
Max Tool Dia: 2.95″ – 5.91″
Max Tool Length: 11.81″

General:
Air Required: 80 psi 4 scfm
Power: 220v / 40 kva / 3-Phase
Overall Dimensions: 112″ x 95″ x 104″ High Approx.
Weight: 11,111 lbs Approx.

12,000 RPM High Speed Spindle

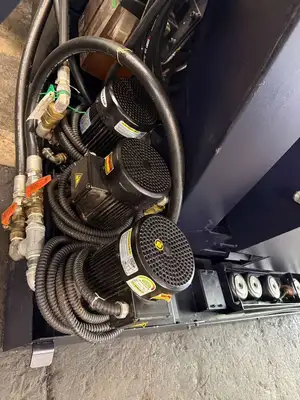

Through Spindle Coolant
Renishaw Probing System (Probe Included)
CAT-40 Taper Spindle
30 Station Side Mounted Tool Changer
MPG Handwheel Control

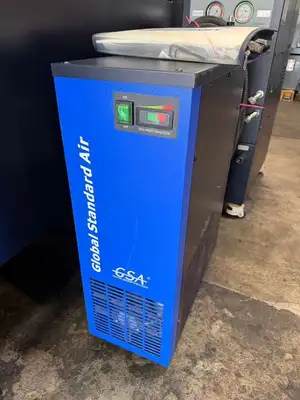

GSA Air Dryer

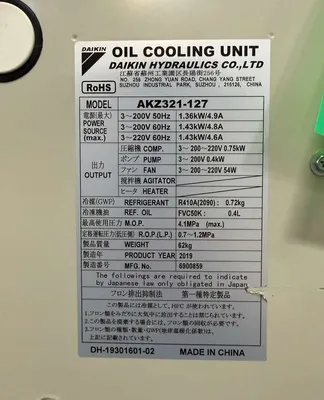

Daiken Oil Cooling Unit

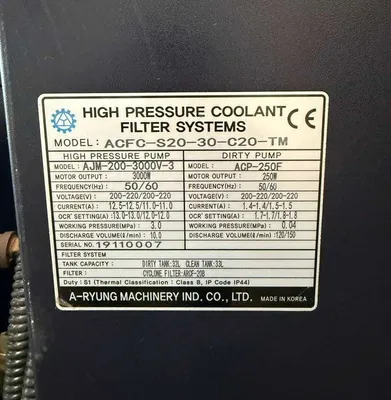

High Pressure Coolant Filter system

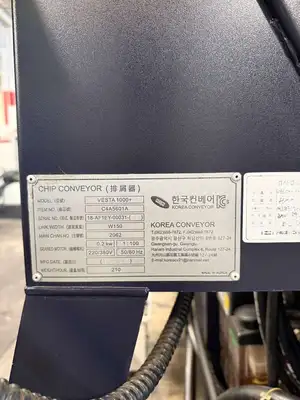

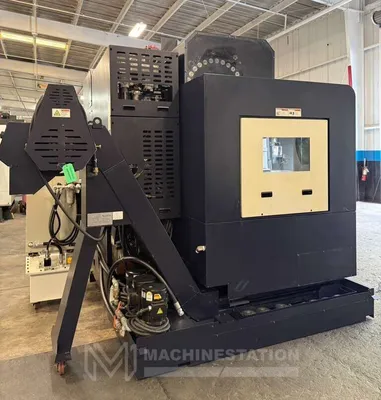

Side or Rear Mounted Chip Conveyor
Books & Manuals
Levelling Pads
