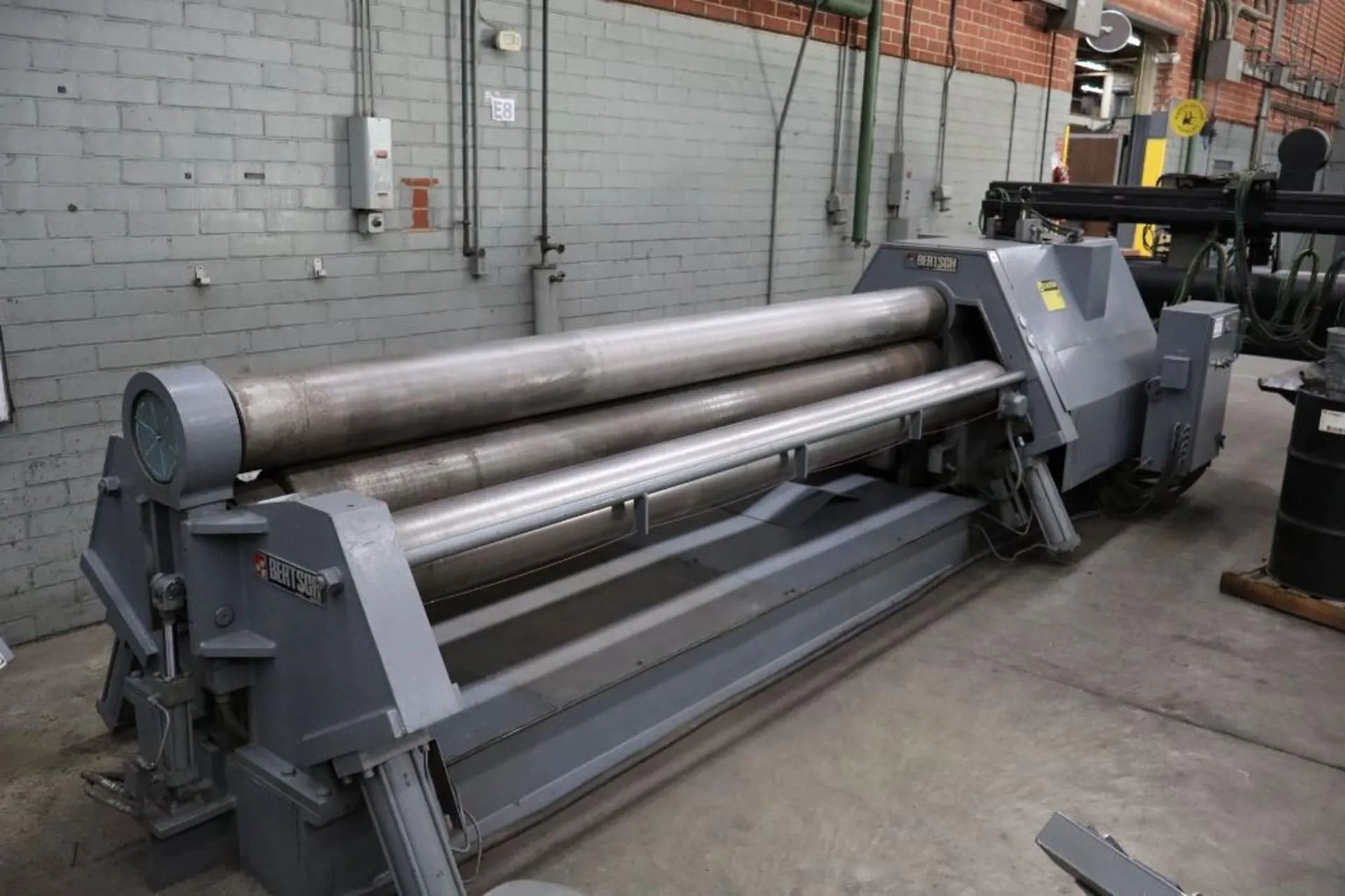

12' x 3/8" BERTSCH "8" 4-ROLL HYDRAULIC PLATE BENDING ROLL - Hydraulic Drop End -10” top roll diameter - 11" bottom roll diameter - 10” side rolls diameter - pre-bending capabilities
| Length of Rolls | 12' | 3.7 m |
| Max Thickness | 0.375" | 9.525 mm |
| # Rolls | 4 | 4 |
| Hyd/Mech | 'Hyd' | 'Hyd' |
| Power Rear Roll (Yes/No) | yes | yes |
| Power | 10 hp | 7.5 kW |
| Roll Diameter | 10" | 254 mm |
| Dimensions | 224” x 66” | 224” x 66” |
| Weight | 35000 LBS | 35000 LBS |
12’ x 3/8” BERTSCH DOUBLE-PINCH 4-ROLL HYDRAULIC PLATE BENDING ROLL
Serial No M-10772, Model 8
EQUIPPED WITH:
Hydraulic Hinge Drop End
Hydraulically Adjusted Lower Pinch Roll And Two Side Rolls
Leveling System Insuring Parallelism Of Side Rolls And Tilt
Side Roll Adjustment Allowing Pre-Bend At Rated Capacity
From Either Side Of Machine
Control Stand w/(3) Digital Readouts - (3) Roll Tilting
Controls Up/Down & Hinge Open/Close
CATALOG SPECIFICATIONS:
Capacity Rating, Boiler Duty 12’ x 3/8”
Capacity Rating, Pipe Duty 12' x 1/4"
Top Roll Diameter 10"
Side Rolls Diameter 10”
Bottom Roll Diameter 11"
Motor Horsepower 10 HP
Overall Dimensions, L x W 224” x 66”
Weight Approximately 34000 LBS
F.O.B. OUR WAREHOUSE
