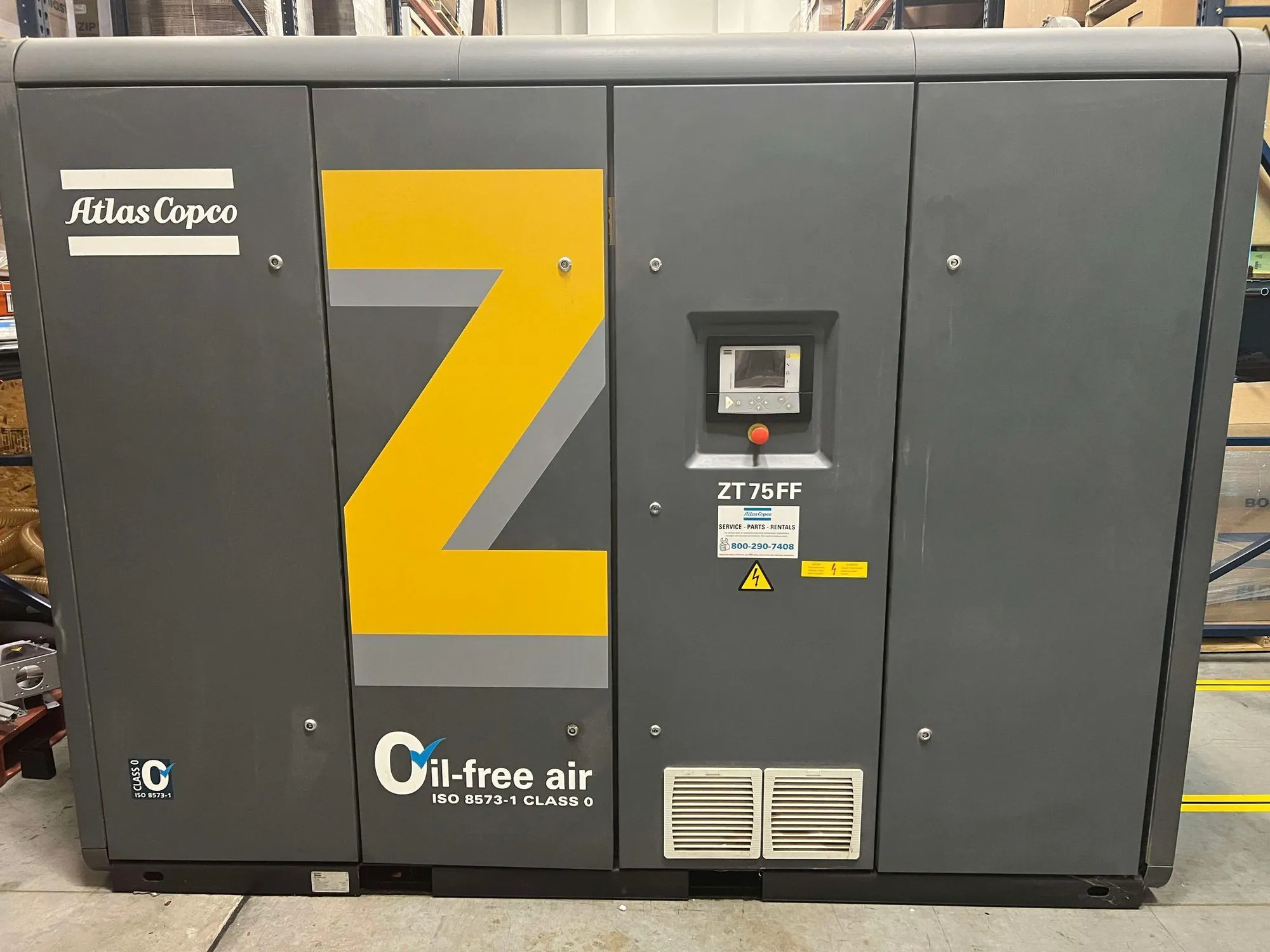

USED 2016 ATLAS COPCO ZT75FF
Overview
Description
ATLAS COPCO ZT75FF Oil-Free Screw Compressor- Integrated Dryer, Class 0, New in 2016.
Output for Clean Room, Pharmaceutical, and Food-Grade Operations
Specifications
| Power | 75 hp | 55.9 kW |
|---|---|---|
| Dimensions | 80" x 45" x 78" | 80" x 45" x 78" |
| Weight | 5511 lbs | 5511 lbs |
Equipment Overview:
The Atlas Copco ZT75FF is a fixed-speed, oil-free rotary screw air compressor designed for continuous duty, hight purity air applications.
The FF (Full Feature) designation indicates an integrated air dryer for turnkey air quality compliance.
Its 75 HP motor and 8.8 bar (127 psig) pressure rating provide reliable output for clean room, pharmaceutical, and food-grade operations.
Key Features and Specifications:
Compressor Type: Rotary screw, oil-free
Drive Type: Direct-drive
Power Rating: 55 kW / 75 HP motor, 400V / 3-phase operation
Max. Working Pressure: 8.8 bar (127 psig)
Free Air Delivery (FAD): Approx. 250–270 cfm (dependent on conditions)
Air Quality Classification: ISO 8573-1 Class 0 (oil-free)
Integrated Dryer: Yes – FF version with refrigerated air dryer
Cooling Type: Air-cooled (default for ZT series; confirm)
Rotational Shaft Speed: 3570 RPM
Noise Level: ~69–72 dBA
Control Panel: Elektronikon® graphical interface
Safety: Overload protection, high-temp shutdown, emergency stop
Weight: 2500 kg / 5511 lbs
Dimensions (est.): ~80″ W × 45″ D × 78″ H
