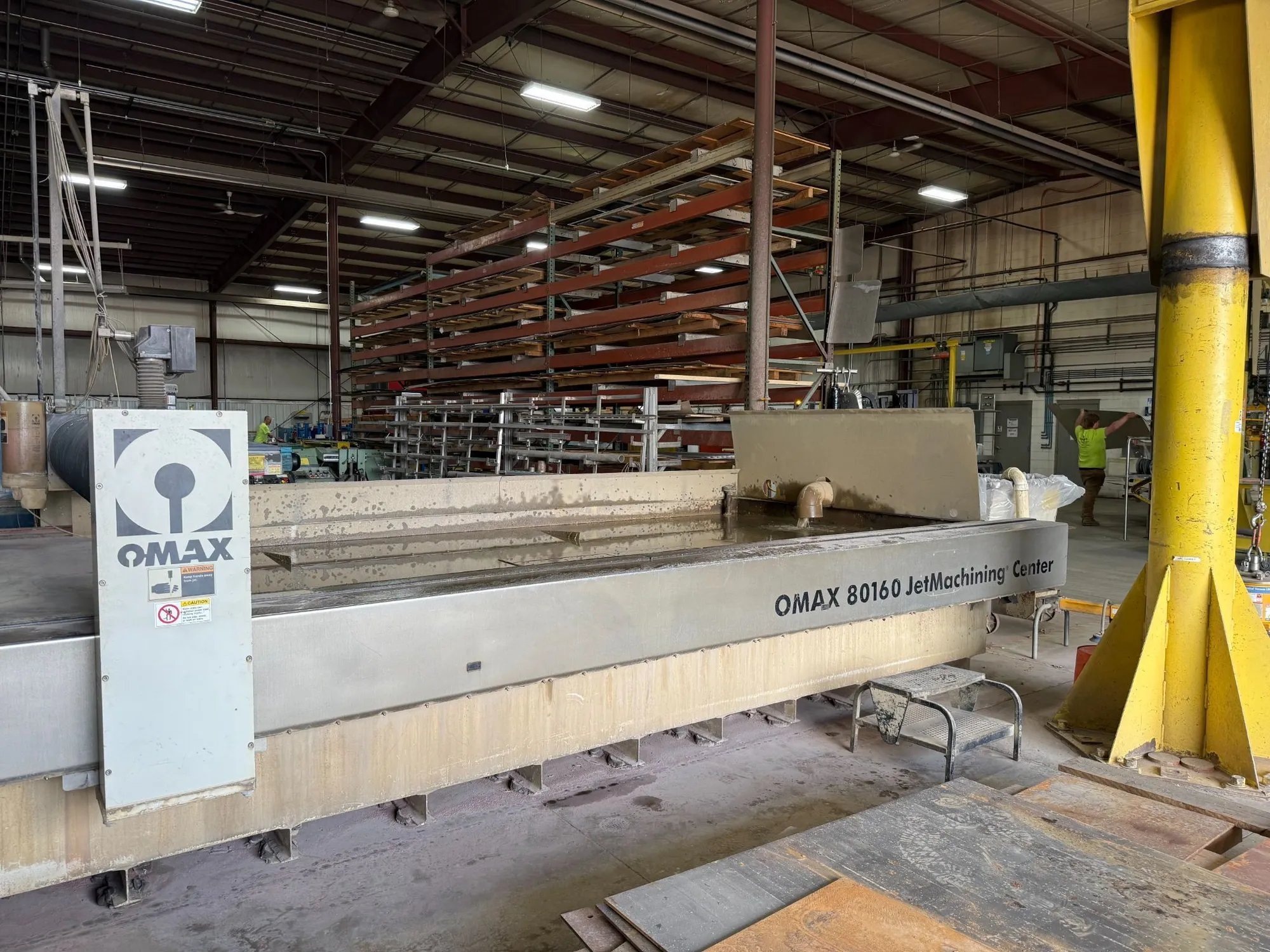

USED 2006 OMAX 80160

Omax 80160 JetMachining Center Water Jet (2006)

Machine Dimensions Footprint 243" x 134" 6.2 m x 3.4 m
288” x 134” 7.3 m x 3.4 m
Weight (tank empty) 10,000 lbs 4550 kg
Height 144" 3.7 m
Operating Weight (with water in tank) 35,000 lbs 15,900 kg

Work Envelope/
Cutting Table X Axis Travel** 168" 4.26 m
Y Axis Travel** 80" 2.03 m
X Axis Table Size 174" 4.42 m
Y Axis Table Size 91" 2.31 m
Material Support Slats 4" x 1/8" Galvanized Steel 10 cm x 0.3 cm
Maximum Supported Material Load 250 lbs/sq. ft. 1,200 kg/m2

Drive Description Closed loop, digital drives
Brushless servo motors
Pre-loaded ball screws, recirculating ball bearings and hardened precision ground ways
Bridge style Y-Axis
Optional: two cutting heads with adjustable Y-spacing
Single cutting head
Full Y-Axis travel for single-head operation
Motor controlled precision Z-axis

Accuracy of Motion Over entire travel ±0.005" ±0.127 mm
Over 1 foot travel ±0.002" ±0.051 mm
Repeatability ±0.002" ±0.051 mm
Squareness 0.002" per ft 0.17 mm/m
Straightness 0.003" per ft 0.25 mm/m
Backlash 0.0007" max. 0.018 mm
(Specifications per National Machine Tool Builders Association standard)

Speed 200 inches per minute standard (5.1 m/min)
(speed can be increased if desired)

Electrical Requirements 220-240 VAC, 60 Hz/Single-Phase
440-500 VAC, 60 Hz / 3-Phase
208-230 VAC, 60 Hz / 3-Phase (step-up transformer available as an option)
International (CE): 220-240 VAC, 50Hz / Single-Phase

Pump Options 20 horsepower, 40,000 psi (Standard) 15 kW, 276,000 kPa (Standard)
30 horsepower, 50,000 psi (Optional) 22 kW, 345,000 kPa, (Optional)
40 horsepower, 55,000 psi (Optional) 30 kW, 379,200 kPa, (Optional)

Noise Level Below 80 dBA for submerged cutting
