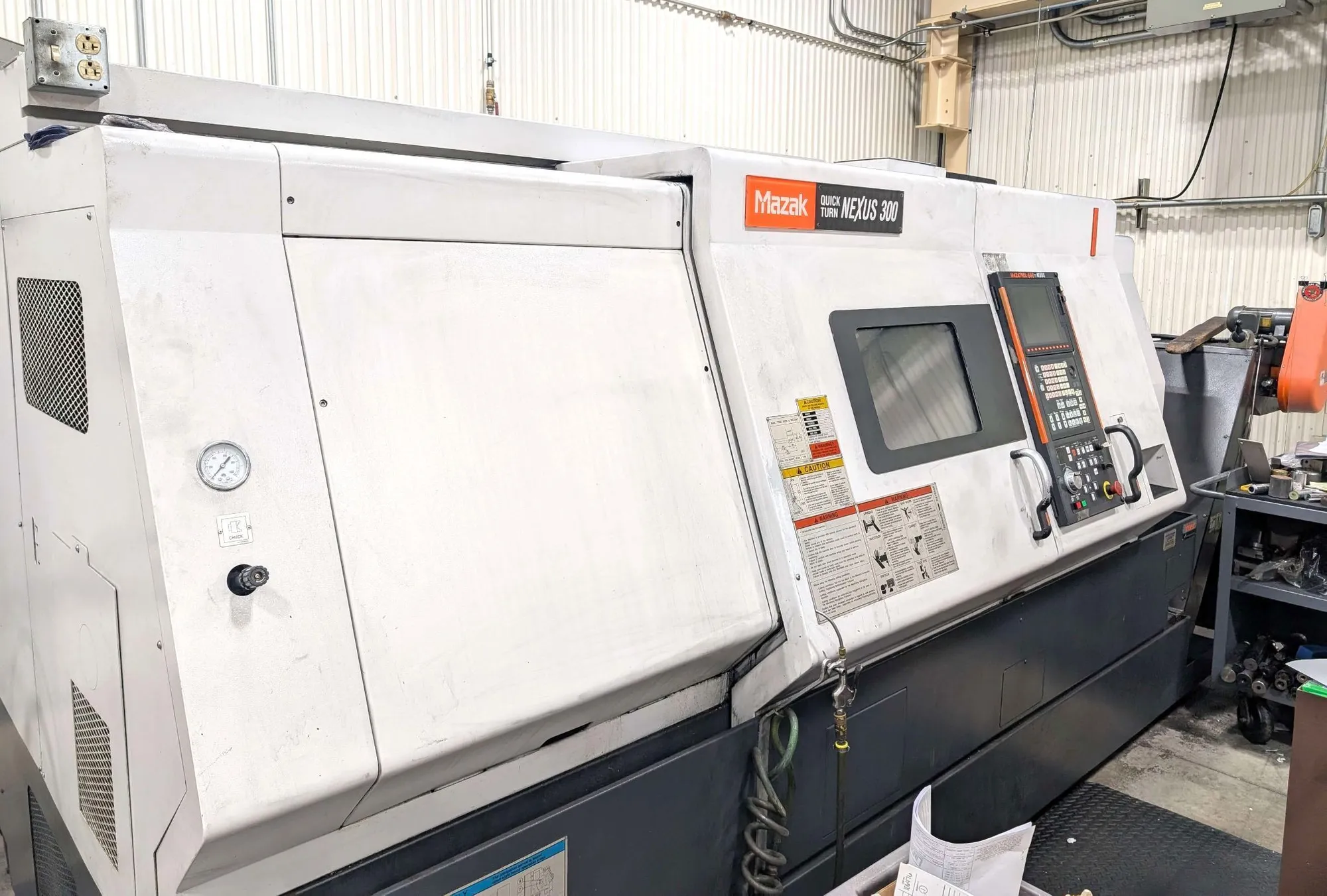

USED 2005 MAZAK QTN-300
Overview
Description
8,450 Cutting Hours, 48" Cutting Length, 10" Chuck, Tailstock, Tool Presetter, Chip Conveyor. This originally owned 2005 QTN-300 (Quick Turn Nexus) 2-axis cnc lathe also includes the EIA/ISO option package, ethernet, and has only been cutting tool steel.
Specifications
| MAX SWING | 26.77" | 679.96 mm |
|---|---|---|
| MAX CUTTING DIAMETER | 16.53" | 419.86 mm |
| MAX CUTTING LENGTH | 48.23" | 1,225 mm |
| X-AXIS TRAVEL | 8.85" | 224.79 mm |
| Z-AXIS TRAVEL | 49" | 1,244.6 mm |
| CHUCK SIZE | 10" | 254 mm |
| BAR CAPACITY | 3" | 76.2 mm |
| SPINDLE BORE | 3.46" | 87.884 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 35 hp | 26.1 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| TURRET POSITIONS | 12 | 12 |
| Dimensions | 137" x 80" x 79" | 137" x 80" x 79" |
| Weight | 17,200 | 17,200 |
Equipped With
MAZATROL 640T NEXUS CNC CONTROL
HYDRAULIC TAILSTOCK
TOOL PRESETTER
10", 3-JAW KITAGAWA CHUCK
CHIP CONVEYOR
COOLANT SYSTEM (118 PSI, 16 GPM)
IC MEMORY CARD INTERFACE
PCM CIA INTERFACE (2 SLOTS)
EIA/ISO OPTION PACKAGE
RS232 PORT INTERFACE
ETHERNET
** ORIGINAL OWNER
** AS OF OCTOBER, 2025 - TOTAL CUTTING TIME: 8,450 HOURS
** MACHINE CUTTING PRIMARILY TOOL STEELS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
