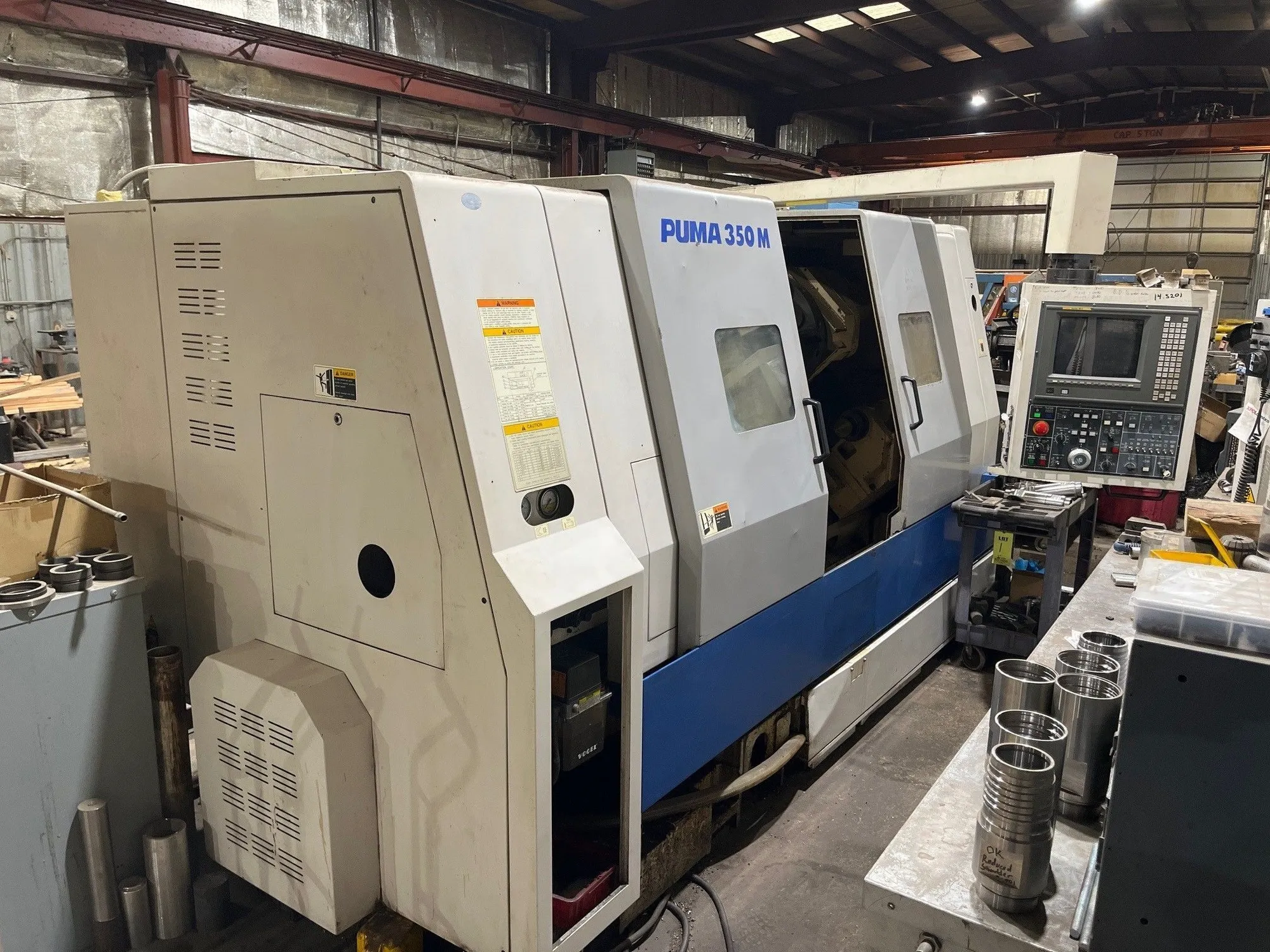

The Doosan Puma 350M is a robust horizontal CNC lathe known for its high precision in machining medium to large components. Key features include a high-torque spindle, a 12-station turret (with live tooling on some models), and a Fanuc control system. It is versatile for producing parts like shafts, flanges, and hydraulic components for industries like automotive and aerospace.
| Swing | 28" | 711.2 mm |
| Machining Length | 41.3" | 1,049 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 3.5" | 88.9 mm |
| Chuck Size | 12" | 304.8 mm |
| Turning Diameter | 18.1" | 459.74 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| # of Turrets | 1 | 1 |
| Hole Thru | 4.02 in | |
| Control | CNC (18T FANUC) | CNC (18T FANUC) |
CHUCK SIZE.............................12"
BAR CAPACITY...........................3.5"
SPINDLE BORE...........................4.02"
SWING OVER BED.........................28"
SWING OVER CARRIAGE....................18.9"
MAXIMUM TURNING DIAMETER...............18.1"
MAXIMUM TURNING LENGTH.................41.3"
SPINDLE MOTOR..........................40 HP
SPINDLE SPEEDS.........................30 TO 3,000 RPM
ROTARY TOOL SPINDLE MOTOR..............7.5 HP
ROTARY TOOL SPEEDS.....................30 TO 3,000 RPM
SPINDLE INDEXING (C-AXIS)..............0.001 DEGREES
TURRET CONFIGURATION.(VDI-50)..........12 TOOLS (6 STATIONS FOR LIVE HOLDERS)
RAPID TRAVERSE.(X/Z AXES)..............630 / 790 IPM
TRAVELS (X/Z AXES).....................14.3" / 43.5"
TAILSTOCK QUILL STROKE PROGRAMABLE.....4.7"
Tail Stock
Tool Setter
Live Tooling
