USED 2019 MAZAK VC 500A/5X
Overview
Description

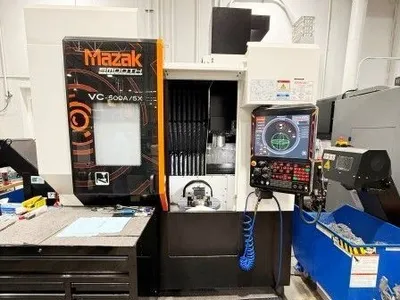

MAZAK VC 500A/5X CNC 5 Axis Machining Center from 2019, used but in excellent condition. Equipped with MAZATROL SMOOTH X, 40 HP spindle, 20,000 RPM, 60 ATC, and synchronized tapping. Features high-speed performance and advanced software capabilities with probing.
Specifications
| Number Of Tables / Pallets | 1 | 1 |
|---|---|---|
| Table Size - L | 19.96" | 506.98 mm |
| Table Size - W | 19.96" | 506.98 mm |
| Weight On Table | 440 lb | 199.6 kg |
| Main Spindle Horse Power | 40 hp | 29.8 kW |
| Spindle Nose To Table | 4.52" - 24.6" | 4.52" - 24.6" |
| Main Spindle Speeds | 20,000 RPM | 20,000 RPM |
| Main Spindle Taper | 40.0 | 40.0 |
| X - Axis Travel | 21.85" | 554.99 mm |
| Y - Axis Travel | 19.88" | 504.95 mm |
| Z - Axis Travel | 20.07" | 509.78 mm |
| B - Axis Travel | + - 110 Degrees | + - 110 Degrees |
| C - Axis Travel Table Indexing | + - 360 Degrees | + - 360 Degrees |
| Rapid Traverse Rate - X | 1,181 in/min. | 30 m/min. |
| Rapid Traverse Rate - Y | 1,181 in/min. | 30 m/min. |
| Rapid Traverse Rate - Z | 1,181 in/min. | 30 m/min. |

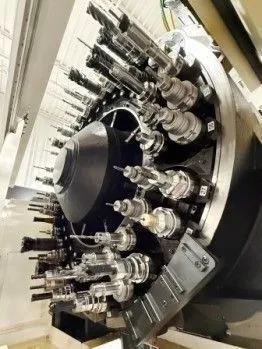

| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 3.15", 4.92" | 3.15", 4.92" |
| Tool Length | 10.23" | 259.84 mm |
| Tool Weight | 17 lb | 7.7 kg |
| Machine Weight | 15,300 lb | 6,940 kg |
| Control | CNC | CNC |
| Weight | 0.00 | 0.00 |
Equipped With
MAZATROL SMOOTH X CNC CONTROL
SYNCHRONIZED TAPPING

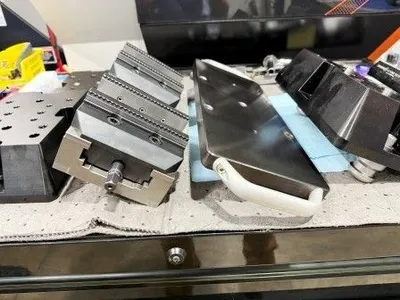

SCHUNK QUICK CHANGE SYSTEM
G00 SLOPE CONSTANT
CHIP CONVEYOR
EIA/ISO
HIGH SMOOTH CONTROL
SPIRAL EIA 3D COMPENSATION
ROTATION, GEOMETRIC, SCALING
EXT DATA I/O
HIGH SPEED
SHAPE COMP, THREAD, INVERSE TIME
3-D CO-OR ROT.
POLAR COORDINATE INPUT
COMPARISON STOP
VARIABLE 600 SETS
SIMULTANEOUS 5 AXIS
EIA HELICAL TAP AND PATTERN CYCLES
TILTED WORKPLANE
WORK POSITION ERROR COMP.
HAND HELD MPG
ADVANCED ETHERNET / IP
DUAL PROBING KIT RMP 600, RTS-AA W/EIA INSPECTION PLUS SOFTWARE
WORK PIECE AIR BLAST
CHIP CONVEYOR
