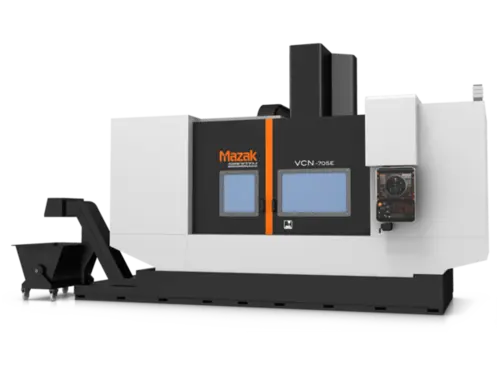

Made in Kentucky, the VCN-705E vertical machining center sets a new precedent in large part production, whether it involves heavy-duty roughing or high-speed finishing. The machine features a high-torque 50-taper spindle to give the machine the strength and power for aggressive metal removal in tough-to-machine materials, making it perfect for industry segments that require heavy-duty cutting operations such as automotive, construction and energy.
Built with a traditional C-frame design, vibration-dampening, rigid base and headstock/column castings, the VCN-705E provides the extreme stability needed to handle the most challenging parts. Plus, the machine’s high-speed automatic tool change system (ATC) is servo-driven for fast and reliable operation. Tool changes occur in 4.4 seconds to significantly reduce non-cut times and get spindles back in the cut in the shortest times possible.
| X | 80" | 2,032 mm |
| Y | 27.56" | 700.02 mm |
| Z | 28.35" | 720.09 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Table-W | 80" | 2,032 mm |
| Table-L | 27.56" | 700.02 mm |
| # Axis | 3 | 3 |
