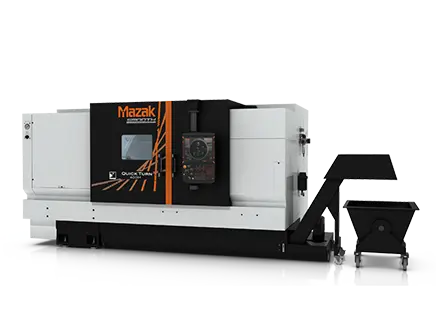

The Kentucky-made QUICK TURN 400M CNC Turning Center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops of all sizes.
With its M configuration, the machine features milling capabilities (M) along with a standard, large spindle bore capacity of 5.2" for a variety of through-hole applications. The standard 50-hp integral turning spindle motor allows the QUICK TURN 400M to process a wide range of medium or larger-diameter parts.
The QUICK TURN 400M features a machine design that minimizes vibration during heavy duty turning to create exceptional surface finishes and maintain long tool life. With no transmission belts, pulleys or gears, its integral spindle/motor delivers more of its high-efficiency power to the tool tip for cutting purposes.
| Swing | 33.26" | 844.8 mm |
| Machining Length | 40.28" | 1,023.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 22.83" | 579.88 mm |
