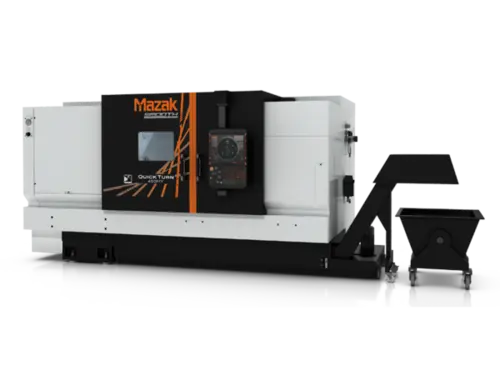

The Kentucky-made QUICK TURN 450MY CNC Turning Center with Multi-Tasking capabilities can perform milling and turning in the same setup for exceptional part-processing efficiency.
With its MY configuration, the machine features milling capabilities (M) and Y-axis off-centerline milling functionality (Y) along with a standard, large spindle bore capacity of 7.28" for a variety of through-hole applications. The standard 50-hp integral turning spindle motor allows the QUICK TURN 450MY to process a wide range of medium or larger-diameter parts in a single setup.
The QUICK TURN 450MY features a machine design that minimizes vibration during heavy duty turning to create exceptional surface finishes and maintain long tool life. With no transmission belts, pulleys or gears, its integral spindle/motor delivers more of its high-efficiency power to the tool tip for cutting purposes.
| Swing | 33.07" | 839.98 mm |
| Machining Length | 121.65" | 3,089.9 mm |
| # Axis | 3 | 3 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 7.2" | 182.88 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 22.83" | 579.88 mm |
| Tailstock | Yes | Yes |
