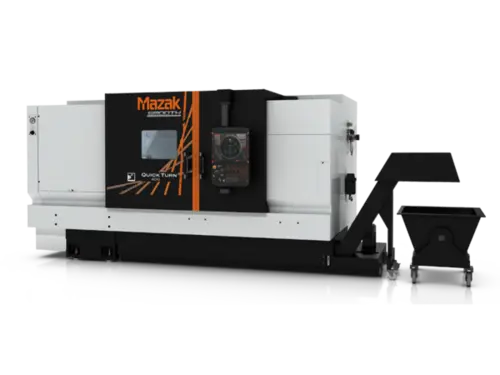

The Kentucky-made QUICK TURN 400 CNC Turning Center brings together advanced technology, productivity and value to deliver exceptional performance for shops of all sizes.
The machine features a standard, large spindle bore capacity of 5.2" for a variety of through-hole applications. The standard 50-hp integral turning spindle motor allows the QUICK TURN 400 to process a wide range of medium or larger-diameter parts.
The QUICK TURN 400 features a machine design that minimizes vibration during heavy duty turning to create exceptional surface finishes and maintain long tool life. With no transmission belts, pulleys or gears, its integral spindle/motor delivers more of its high-efficiency power to the tool tip for cutting purposes.
| Swing | 33.26" | 844.8 mm |
| Machining Length | 40.25" | 1,022.3 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 22.83" | 579.88 mm |
