MACHINE DESCRIPTION:

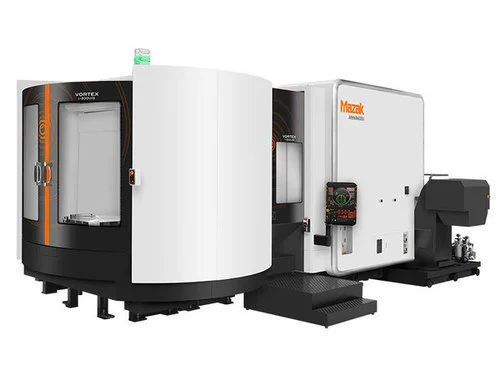

The VORTEX i-800V/8 vertical machining center with a 31.5" square pallet is perfect for job shops as well as aerospace and heavy construction part manufacturers focused on value, precision and high-production.
The machine’s tilting spindle allows for the 5-axis simultaneous machining of complex contours on large parts, such as jet engine casings, airframe components and gearboxes, made from titanium, aluminum and steel.
Standard, high-speed and high-torque spindle specifications are available to successfully meet a wide variety of application requirements.
The machine comes with a two-pallet changer that provides unattended operations and off-cycle part setup. This simple, efficient form of automation allows operators to load, unload and inspect parts on one pallet while the machine works on the other undisturbed.
MACHINE CHARACTERISTICS:
Handles parts up to 59" in diameter and 63" high
Spindle selection addresses various metal removal requirements
Tool storage capacities from 43 to 160 tools offer high flexibility
Two-pallet changer facilitates unattended machining
Integrates with optional PALLETECH System for lights-out operations
| X | 66.93" | 1,700 mm |
| Y | 59.06" | 1,500.1 mm |
| Z | 45.28" | 1,150.1 mm |
| # Axis | 5 | 5 |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 43 | 43 |
| Taper | 50 | 50 |
