MACHINE DESCRIPTION:

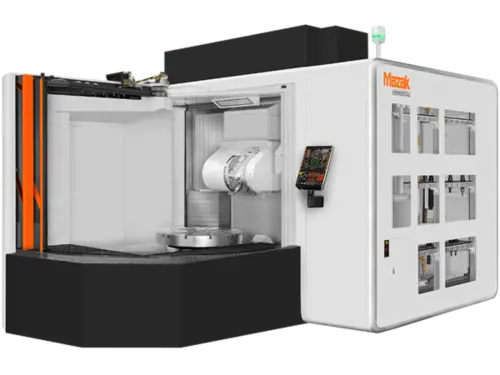

Perfect for job shops as well as aerospace and heavy construction part manufacturers, the single-table VORTEX e-1600V/10S machining center fuses together the capabilities of a full simultaneous 5-axis machine with those of a vertical turning center to easily handle large, highly complex components from aluminum, steel and high-temperature alloy materials.
The machine comes with a two-pallet changer that provides unattended operations and off-cycle part setup. This simple, efficient form of automation allows operators to load, unload and inspect parts on one pallet while the machine works on the other undisturbed.
MACHINE CHARACTERISTICS:
Direct-drive table eliminates backlash for high accuracy machining
Spindle selection addresses various metal removal requirements
Tilting B-axis allows for full 5-axis machining
Powerful turning spindle delivers heavy-duty performance
Large tool storage capacities offer high flexibility
Tool magazine located near operating area for convenient tool setup
| X | 85.24" | 2,165.1 mm |
| Y | 49.21" | 1,249.9 mm |
| Z | 52.95" | 1,344.9 mm |
| # Axis | 5 | 5 |
| Power | 50 hp | 37.3 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 42 | 42 |
| Taper | 50 | 50 |
