MACHINE DESCRIPTION:

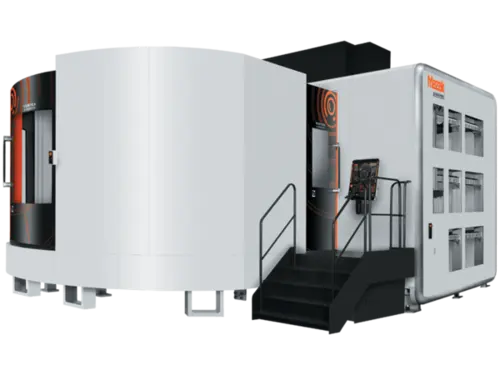

The VORTEX e-1600V/10 machining center combines full 5-axis machining, vertical turning operations and pallet-changing capabilities to productively process large, highly complex parts, such as jet engine casings and gearboxes, from titanium, aluminum and steel.
The machine comes with a two-pallet changer that provides unattended operations and off-cycle part setup. This simple, efficient form of automation allows operators to load, unload and inspect parts on one pallet while the machine works on the other undisturbed.
MACHINE CHARACTERISTICS:
Direct-drive table eliminates backlash for high accuracy machining
Spindle selection addresses various metal removal requirements
Tilting B-axis allows for full 5-axis machining
Powerful turning spindle delivers heavy-duty performance
Large tool storage capacities offer high flexibility
Tool magazine located near operating area for convenient tool setup
Two-pallet changer facilitates unattended machining
Integrates with optional PALLETECH System for lights-out operations
| X | 91.14" | 2,315 mm |
| Y | 62.99" | 1,599.9 mm |
| Z | 52.96" | 1,345.2 mm |
| # Axis | 5 | 5 |
| Power | 50 hp | 37.3 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 42 | 42 |
| Taper | 50 | 50 |
