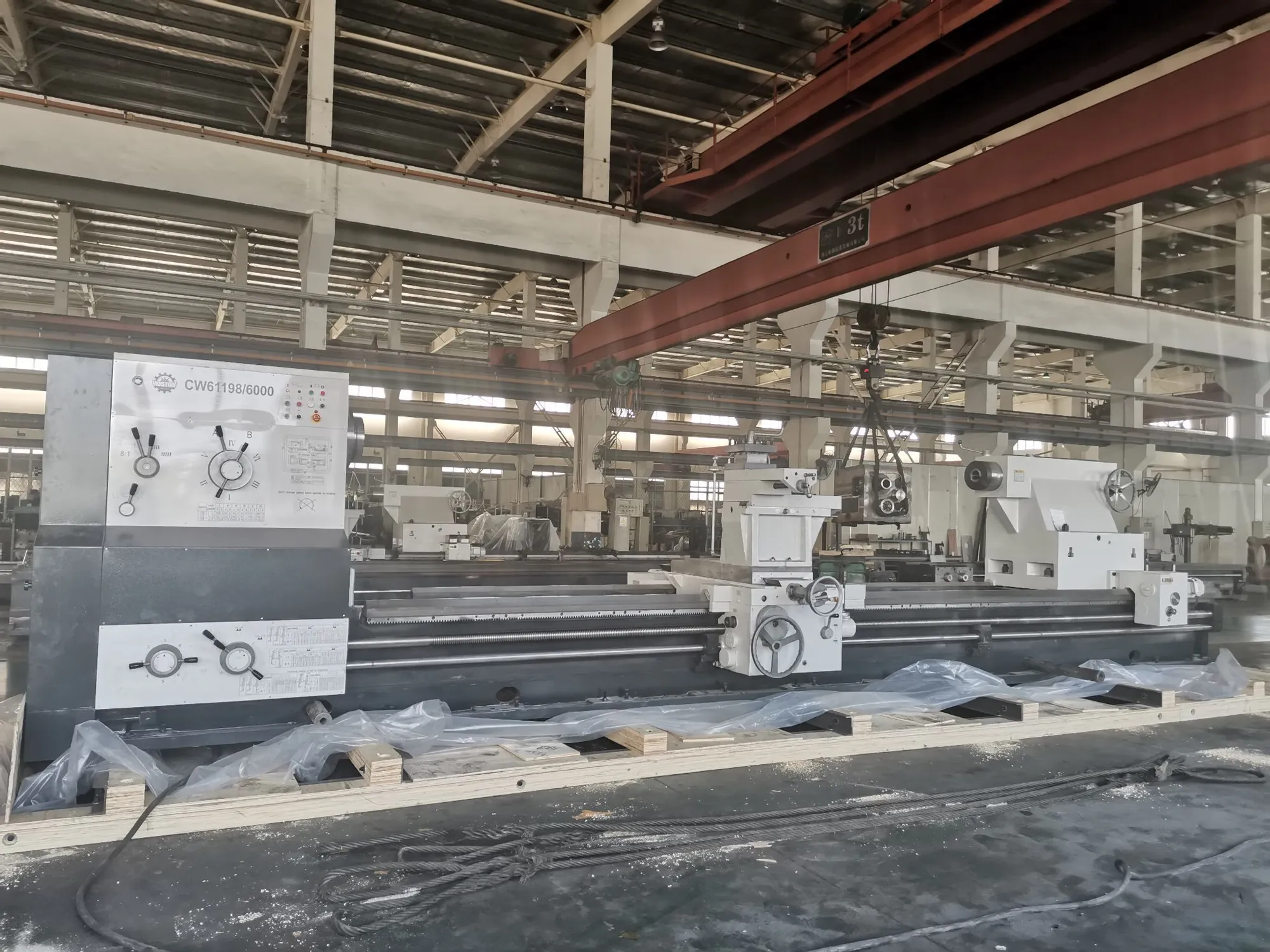

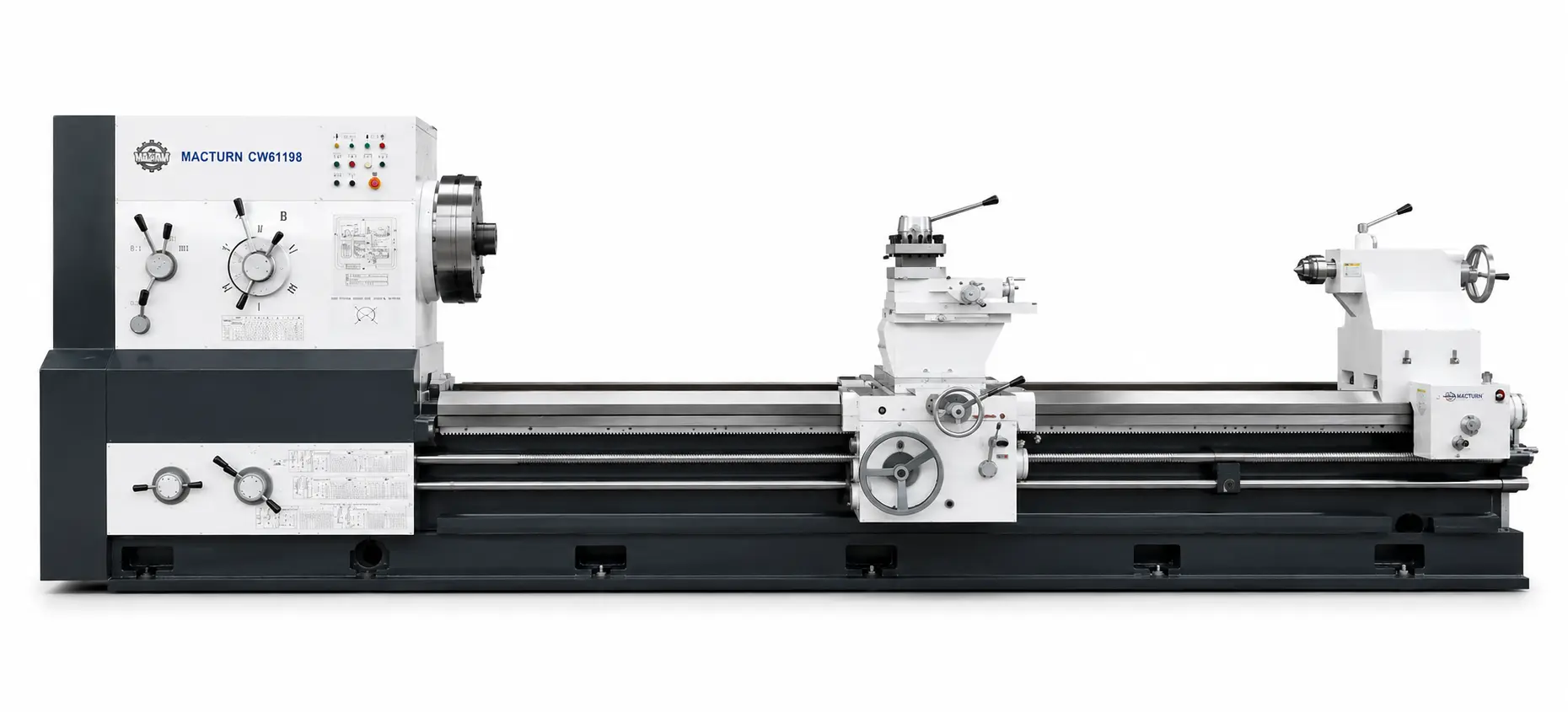

NEW Macturn CW61198

Max workpiece weight:10T
Max swing over bed:1980mm
Max swing over cross slide:1500mm
Center distance:8M
Bed width:1100mm
Spindle bore:∮130mm
Spindle taper: Metric 140#
Spindle speeds:2-200r/min
Number of rotations: 21 forward, 12 reverse
Metric threads range:44kinds 1-120mm
Inch threads range:31kinds 1/4-24TPI
Module threads range:45kinds 0.5-60mm
Diametral threads range:38kinds 1/2-56DP
Longitudinal feeds range:56kinds 0.1-12mm
Cross feed range:56kinds 0.05-6mm
Rapid feed: long/cross:3400mm/min,1700mm/min
Distance between Center&Tool:48mm
Tool section:45*45mm
Cross slide travel:780mm
Compound rest travel:280mm
Sleeve diameter:∮260mm(Built-in small spindle)
Sleeve taper: Metric 80#
Sleeve travel:300mm
Main drive motor:30kw
Coolant pump motor:0.45kw
Rapid feed motor:1.5kw
Tailstock motor:1.5kw
Packaging Dimensions: (Estimated)
(1) Wooden pallet for complete machine:
11800*2280*2550mm N/G: 24.5/25.5t
(2) Wooden pallet for two center frames:
3500*1800*1000mm N/G: 2.5/2.8t
(3) The standard 1250mm heavy-duty four-jaw chuck is
placed in a wooden box with dimensions of:
1300*1300*500mm
