Low hour rarely used Piranha Model PII-140 Dual Operator Ironworker has dual-operator electric controls (foot pedal and joystick) for the punch stations and shear/coper stations. Also featured are Automatic Urethane Hold Downs on the Angle, Plate and Bar Shears. The large, open punch station allows the use of a wide assortment of attachments and tooling.
| Tonnage | 140 T | 127.006 t |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.625" | 15.875 mm |
| Power | 20 hp | 20 hp |
| Throat | 20.5" | 520.7 mm |
| Stroke | 7" | 177.8 mm |

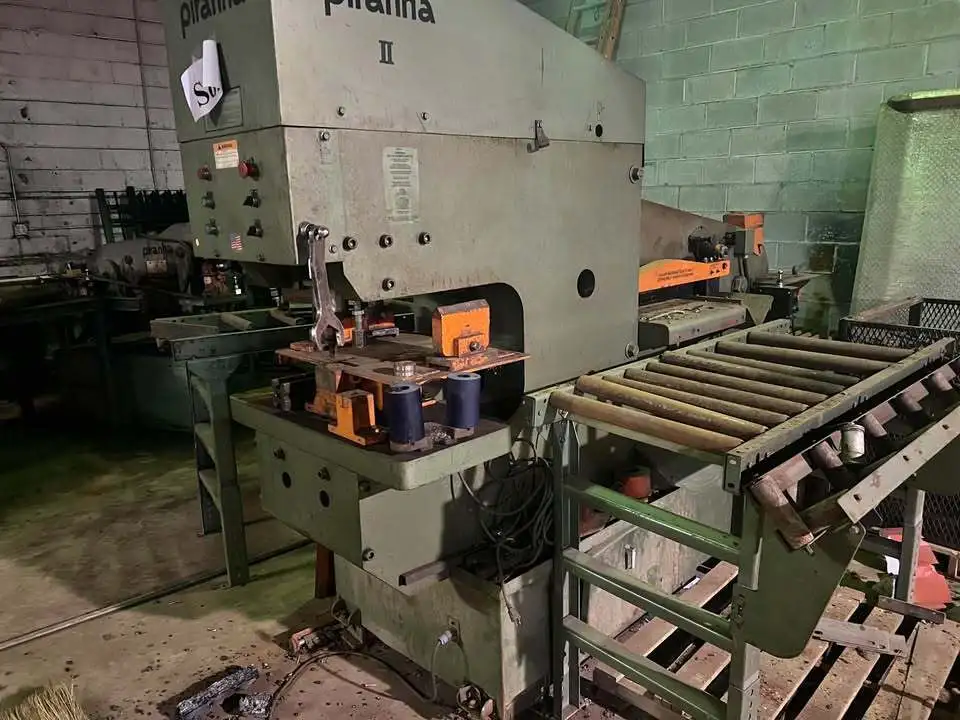

Piranha PII-140 Ironworker
Punching (140 Tons) 1-3/8” diameter through 1-1/4” plate
Throat Depth 20.5”
Bending (Optional) 18” up to 48” w/4-way die block
Round Bar Shear 1/2” through 2”
Square Bar Shear 1/2” through 1-3/8”
Flat Bar Shear 20” x 1/2”, 18” x 3/4”, 14″ x 1″
Angle Shear 6” x 6” x 5/8”
Coping/Notching 4” x 6” x 3/8”
Motor 20 HP
Weight 11,930 Lbs.
