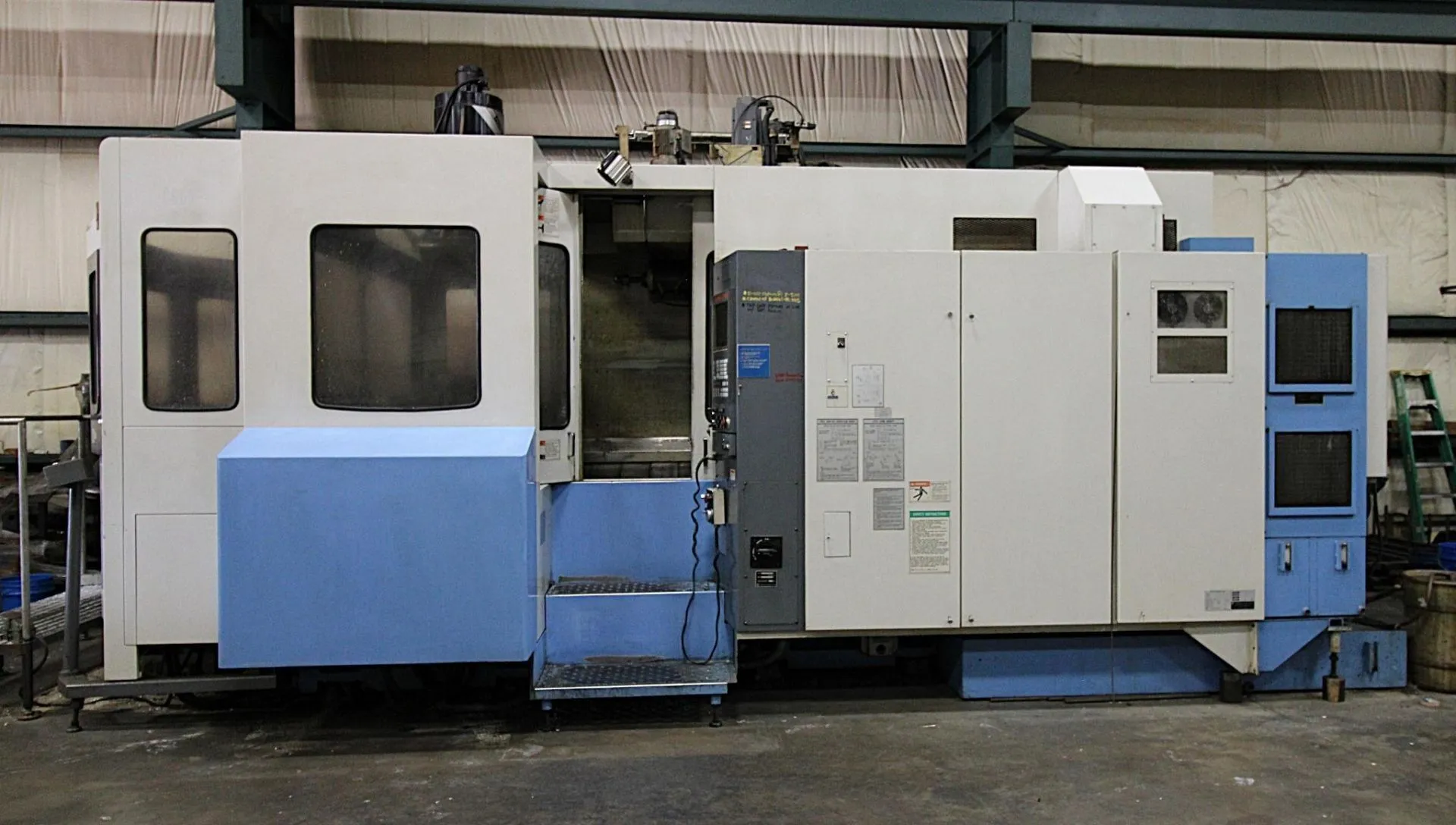

Mazak FH680 CNC Horizontal Machining Center, 1996, with 24.8" pallets and a Mazatrol M Plus control. Features include 10,000 RPM spindle speed, 2 pallets, and X/Y/Z travels of 41.94" x 31.5" x 32.4". Located in Springfield, TN.
| X | 41.94" | 1,065.3 mm |
| Y | 31.5" | 800.1 mm |
| Z | 32.4" | 822.96 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 80 | 80 |
| Taper | CAT-50 | CAT-50 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
| Control | CNC (Mazatrol M Plus control) | CNC (Mazatrol M Plus control) |
| Dimensions | 270" x 134" x 128" | 270" x 134" x 128" |
| Weight | 43600 lbs | 43600 lbs |
Mazak FH680 Horizontal Machining Center w/24.8" pallets,
Mazatrol M Plus control,
s/n 118684
new 1996
Specification Description
PALLET SIZE: 24.8" x 24.8"
PALLET INDEX: 1 DEGREE
# OF PALLETS: 2
X, Y, Z AXIS TRAVELS: 41.94" x 31.5" x 32.4"
SPINDLE SPEED: 10,000 RPM
SPINDLE TAPER: CAT-50
MAIN MOTOR: 40 HP
RAPID TRAVERSE RATE: 1,260 IPM
SPINDLE NOSE TO TABLE CENTER: 7.87" x 40.35"
PALLET TOP TO SPINDLE CENTER: 3.93" x 35.4"
MAXIMUM FEED RATE: 0.4 - 1,260 IPM
MAXIMUM TABLE LOAD: 3,300 LBS
TOOLS: 80
TOOL CHANGE TIME: 2.3 TOOL-TOOL & 6.5 CHIP-CHIP
MAX TOOL WEIGHT: 66 LBS.
MAX TOOL LENGTH:19.68"
MACHINE WEIGHT 43,600 LBS.
Approximate dimensions Machine Footprint
(L x W x H): 270" x 134" x 128"
Excellent condition,
machine under power in shop in Springfield, TN
BUILDING SOLD, MUST SELL
