MACHINE DESCRIPTION:

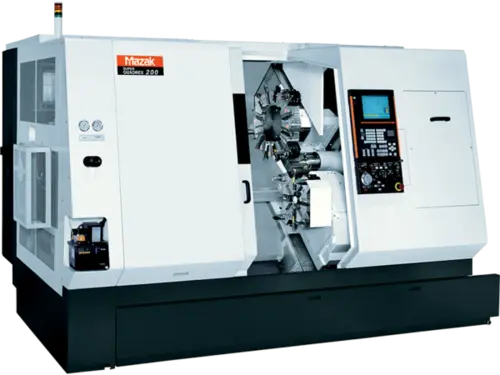

The Super Quadrex 200, 4 axis Series of single spindle, two-turret CNC Turning Centers offers Multi-tasking machining. Faster cycle times by simultaneously cutting with upper and lower turrets –such as O.D. and I.D, O.D. and drilling for balanced cutting. These high production machines also increase throughput for mass production applications of longer shaft work, or for chucked work.
MACHINE CHARACTERISTICS:
Two 45 degree opposed wedge style turrets for combined operations
Balanced cutting capability using both turrets
Bed lengths up to 40"
Steady rest applications capability
Fast setup using standard tool eye feature
Easy integration of bar feeders and gantry robots for automated operations
| Swing | 23" | 584.2 mm |
| Machining Length | 41.25" | 1,047.7 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 14" | 355.6 mm |
