MACHINE DESCRIPTION:

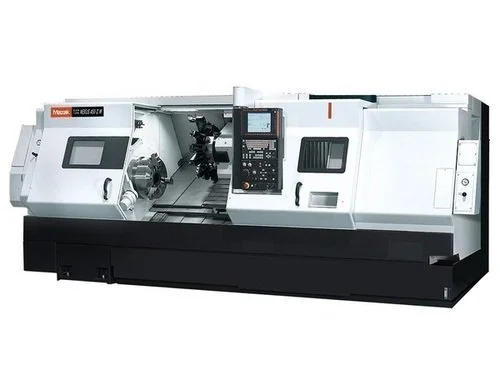

The QUICK TURN NEXUS 450-II M CNC turning center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops of all sizes.
As an (M) configuration, the machine features milling capability as well as turning to process parts in single setups. It efficiently processes various types of large diameter workpieces, with three bed lengths options available to accommodate a wide variety of workpiece lengths.
Plus, the machine comes with the MATRIX NEXUS CNC that features MAZATROL conversational programming and EIA-ISO programming.
MACHINE CHARACTERISTICS:
Powerful, integral main turning spindle
Rotary tool milling spindle
CNC programmable tailstock
Through-hole chuck packages
Fast turret indexing provides maximum efficiency
Automatic tool eye
Automation packages available
| Swing | 33.27" | 845.06 mm |
| Machining Length | 80" | 2,032 mm |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 5" | 127 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 23" | 584.2 mm |
| Tailstock | Yes | Yes |
