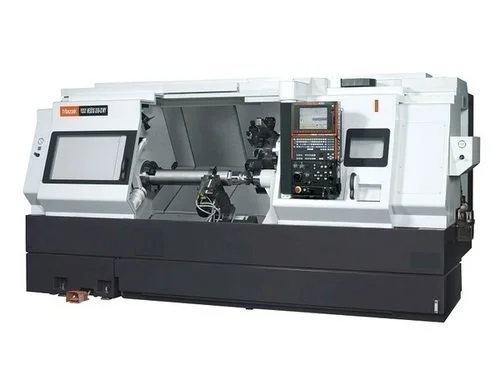

NEW MAZAK QUICK TURN NEXUS 350-II MY-2000U
Overview
Description
MACHINE DESCRIPTION:
The QUICK TURN NEXUS 350-II MY CNC turning center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops large and small.
As an (MY) configuration, the machine features milling capability and Y-axis functionality along with a standard through-hole chuck package, and integral turning spindle motor to process a wide range of medium or larger diameter parts in a single setup.For fully automated operations, the machine can be outfitted with a bar feeder or gantry robot loader.
Plus the machine comes equipped with the MATRIX NEXUS CNC that features MAZATROL conversational programming and EIA-ISO programming.
MACHINE CHARACTERISTICS:
Powerful main turning spindle
Rotary tool milling spindle
Y-axis capability
CNC programmable tailstock
Through-hole chuck packagest
Automatic tool eye
Easy integration of bar feeders and gantry robots
Specifications
| Swing | 29.5" | 749.3 mm |
|---|---|---|
| Machining Length | 83.25" | 2,114.5 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,300 RPM | 3,300 RPM |
| Turning Dia | 16.54" | 420.12 mm |
