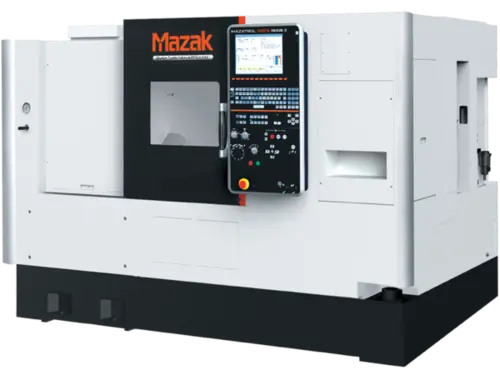

NEW MAZAK QUICK TURN NEXUS 200-II MY-60
Overview
Description
MACHINE DESCRIPTION:
The QUICK TURN NEXUS 200-II MY CNC turning center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops of all sizes. As an (MY) configuration, the machine features milling capability and Y-axis functionality along with a standard through-hole chuck package, and integral turning spindle motor to process a wide range of parts in a single setup.
Plus, the machine comes equipped with the MATRIX NEXUS 2 CNC that features MAZATROL conversational programming and EIA-ISO programming. For fully automated operations, the machine can be outfitted with a bar feeder or gantry robot loader for maximum productivity.
MACHINE CHARACTERISTICS:
Powerful main turning spindle
Rotary tool milling spindle
Y-axis capability
CNC programmable tailstock
Through-hole chuck packages
Automatic tool eye
Easy integration of bar feeders and gantry robots
Specifications
| Swing | 26.5" | 673.1 mm |
|---|---|---|
| Machining Length | 61.3" | 1,557 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 14.75" | 374.65 mm |
