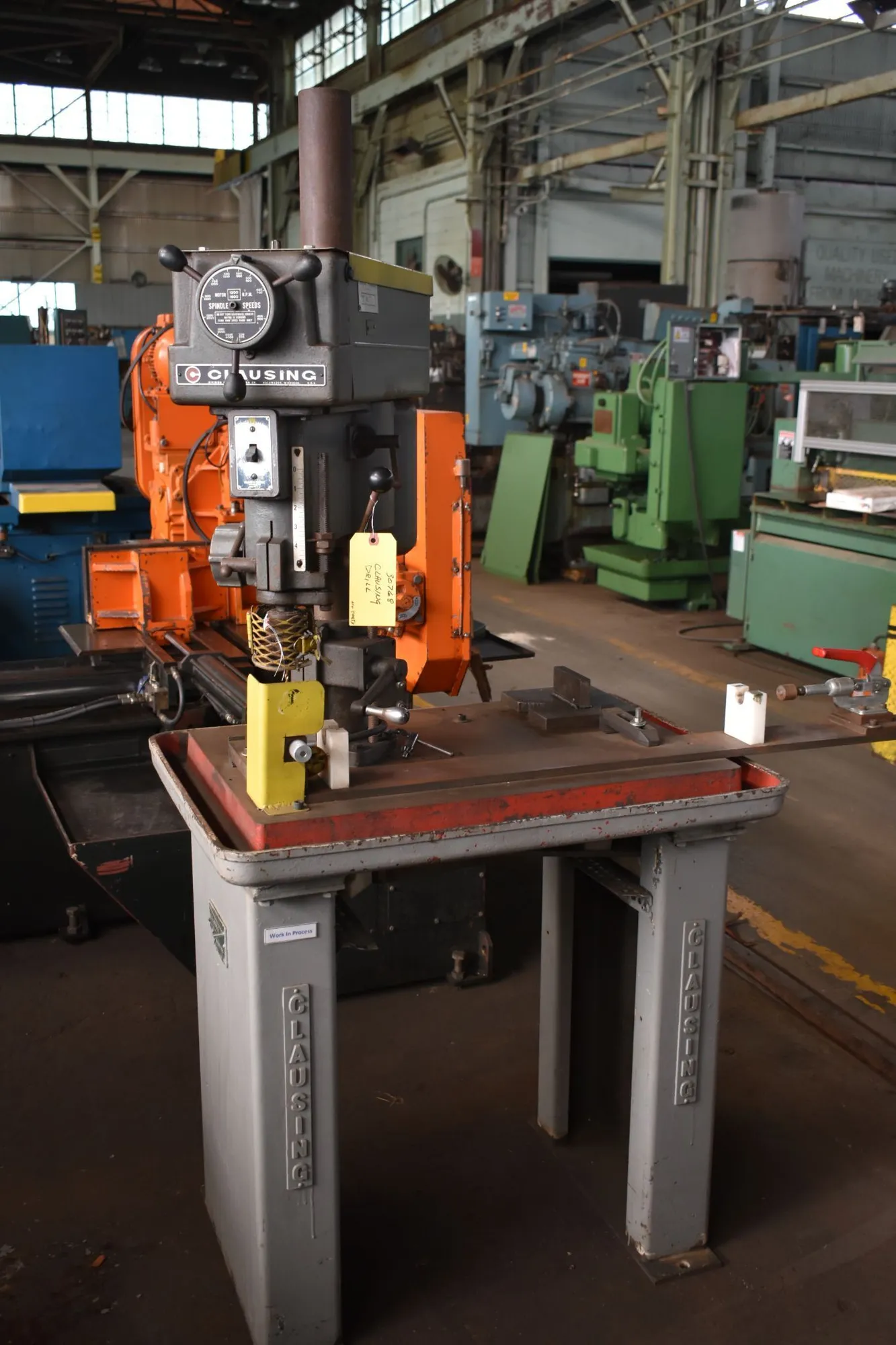

15" CLAUSING "1684" SINGLE SPINDLE BENCH-TYPE DRILL PRESS - 20" x 30" Clausing Bench - Manual Down Feed - 4000 RPM
| Swing | 15" | 381 mm |
| Capacity (Mild Steel) | 0.5" | 12.7 mm |
| Capacity (Cast Iron) | 0.625" | 15.875 mm |
| Power | 0.8 hp | 0.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
15" CLAUSING SINGLE-SPINDLE BENCH-TYPE DRILL PRESS
Serial No 512707, Model 1684,
EQUIPPED WITH:
Round-Column Design
Manual Down-Feed to Spindle
20" x 30" Clausing Bench
CATALOG SPECIFICATIONS:
Drilling Capacity, Mild Steel 1/2"
Drilling Capacity, Cast Iron 5/8"
Spindle Travel, Manual 4.75"
Swing to Center of Circle, Maximum 15"
Table Working Surface, W x L 24" x 32.5"
Quill Diameter 2"
Spindle Taper 2 MT
Spindle Speeds, Range 330 to 4000 RPM
Spindle Motor, Horsepower/RPM 0.75 HP/1140 RPM
Electrical System 115-230/1/60
F.O.B. OUR WAREHOUSE
