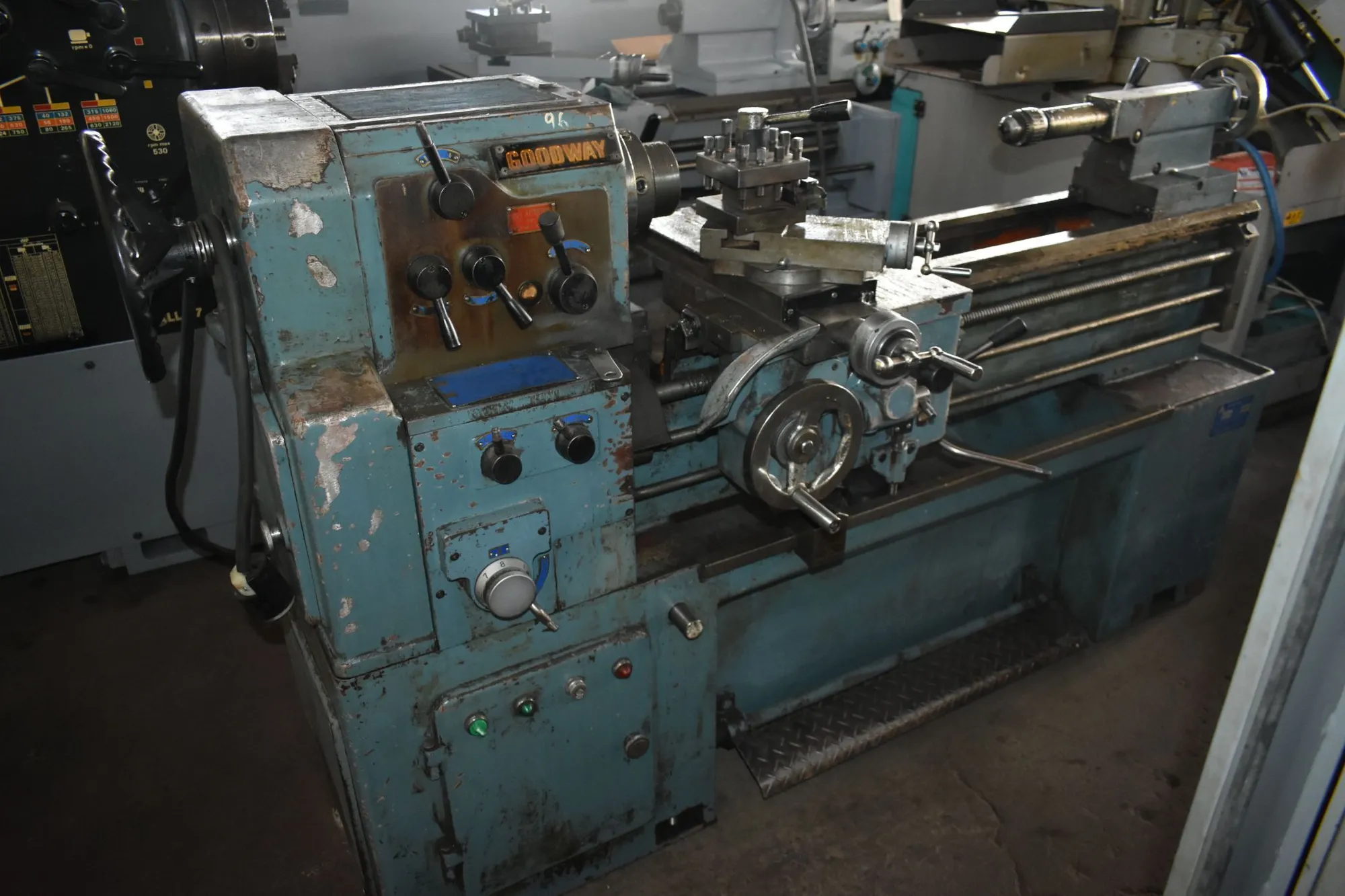

14" x 36" GOODWAY "TML850" ENGINE LATHE w/TAPER ATTACHMENT & INCH/METRIC THREADING
| Swing | 14" | 355.6 mm |
| Centers | 36" | 914.4 mm |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 8.25" | 209.55 mm |
14" x 36" GOODWAY ENGINE LATHE w/TAPER ATTACHMENT
Serial No 03050, Model TML-850,
EQUIPPED WITH:
Taper Attachment
Tool Post - Jacobs Style Chuck
Inch/Metric Threading w/Threading Dial
Hardened Ways
Change Gears
CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.875"
Swing Over Bed Ways, Rated 14"
Swing Over Saddle 8.25"
Spindle Speeds, Range 83 to 1800 RPM
Floor Space Required, L x D 6'5" x 2'6"
Overall Height 4'
Weight, Approximately 2750 LBS
F.O.B. OUR WAREHOUSE
