MACHINE DESCRIPTION:

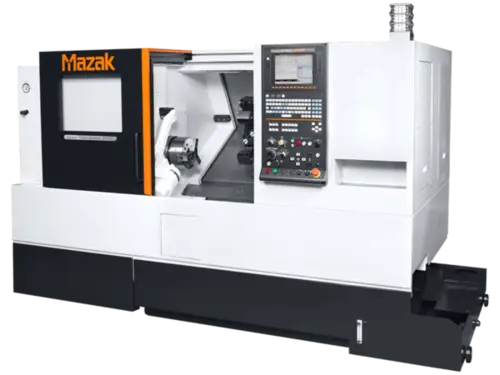

The QUICK TURN SMART 200M CNC turning center provides high performance and unsurpassed production value for small to medium-sized parts. As an (M) configuration, the machine adds milling, drilling and tapping to its turning capability. This gives the machine Multi-Tasking abilities for even shorter part processing times.
The machine is equipped with the SMART CNC control system for easy operation. It utilizes both EIA/ISO format program codes and MAZATROL conversational programming. The machine features our MX Hybrid Roller Guide System that dampens vibration, extends tool life and accelerates/decelerates at high speeds to shorten cycle times.
MACHINE CHARACTERISTICS:
High powered, integrated spindle/motor
User friendly SMART CNC
CNC programmable tailstock
Through-hole chuck packages
Automatic tool eye
Easy integration of bar feeders and gantry robots for unmanned operation
| Swing | 660 mm | 25.984" |
| Machining Length | 21" | 533.4 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 65 mm | 2.5591" |
| Power | 25 kW | 33.5 hp |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 360 mm | 14.173" |
