MACHINE DESCRIPTION:

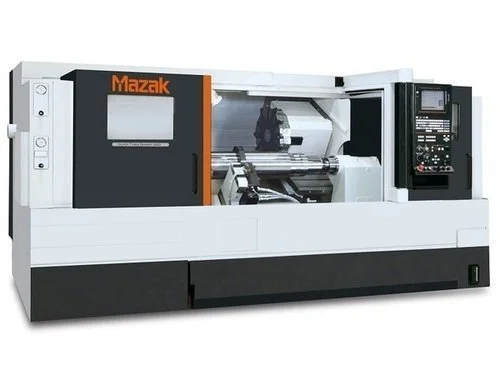

The QUICK TURN SMART 350 CNC turning center provides high performance and unsurpassed production value for medium-sized parts.
The machine is equipped with the SMART CNC system for easy operation and programming. Additionally, the CNC utilizes both EIA/ISO format program codes and MAZATROL conversational programming.
The machine features our MX Hybrid Roller Guide System that dampens vibration, extends tool life and accelerates/decelerates at high speeds to shorten cycle times. With a standard through-hole chuck package, this 2-axis machine efficiently processes a wide range of part sizes.
MACHINE CHARACTERISTICS:
High powered, integrated spindle/motor
User-friendly SMART CNC
CNC programmable tailstock
Through-hole chuck packages
Automatic tool eye
Easy integration of bar feeders and gantry robots for unmanned operation
| Swing | 28.35" | 720.09 mm |
| Machining Length | 24.172" | 613.97 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,300 RPM | 3,300 RPM |
| Turning Dia | 16.5" | 419.1 mm |
| Tailstock | Yes | Yes |
