MACHINE DESCRIPTION:

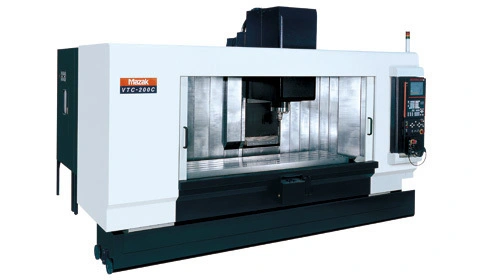

The VERTICAL TRAVELING COLUMN (VTC) 200C Vertical Machining Center features a powerful 40 Taper spindle, full traveling column design and fixed table for machining of extremely long and heavy workpieces. Or with a table center partition the machine work envelop can be transformed into two separate work areas that allow the machine to be in cycle in one work area, while a part is being set up in the other work area. The machine also delivers fast rapid traverse rates to reduce non-cut times.
MACHINE CHARACTERISTICS:
Long fixed table design
Optional table partition available
Standard 12,000-rpm CAT 40-taper spindle
1,181 ipm rapid traverse rate
24-tool (48 optional) storage capacity
Automatic tool changer
Maximum table load of 2,200 lbs.
| X | 65.35" | 1,659.9 mm |
| Y | 20.08" | 510.03 mm |
| Z | 20.08" | 510.03 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 20" | 508 mm |
| Table-L | 90" | 2,286 mm |
