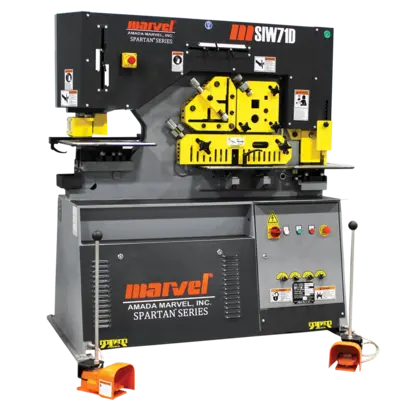

NEW MARVEL MSIW71D
Overview
Strongest LED Lighting & Best Stripper in the Industry
• Heavy-Duty
• Dual Cylinder
• Completely Integrated Ironworker
• 71 Ton Capacity
• 7-1/2 H.P.
• 12” Throat
• 5 Work Stations
• Simultaneous Dual Operation
FEATURES
• Five (5) Sets of Punches & Dies
- Punches: 9/16″, 11/16″, 13/16″, 15/16″, 1-1/16″
- Dies: 19/32″, 23/32″, 27/32″, 31/32″, 1-3/32″
• LED Lighting at all Work Stations
• Adjustable Electric Back Gauge (36″)
• Scrap Boxes at Punching & Notching Stations
• Adjustable Stroke Depth at Punch
• Two (2) Full-Control Foot Pedals
• Two (2) Hold Die Holders
• Two (2) Piece Gauging Table at Punch Station
• Keyed Punch Holder for Shaped Tooling
Specs
Work Stations 5
Punching:
Punching Pressure 71 Tons
Standard Tooling 1-1/2″ x 9/16″
Large Tooling 2″ x 7/16″
*Oversize Tooling 4-5/16″ x 3/16″
Throat Depth 12″
Stroke Length 2-5/32″
Cycle/Min. (3/4″) 25
Work Height 40-9/16″
Flat Bar Shearing:
Capacity 14″ x 5/8″
Width & Thickness 12″ x 3/4″
Blade Length 15″
Angle Flange Trim 4″ x 3/8″
Work Height 35-1/2″
Angle Shear
90° 4″ x 4″ x 3/8″
45° 2-1/2″ x 2-1/2″ x 3/8″
Work Height 44-7/8″
Bar Shearing
Round Bar 1-3/4″
Square Bar 1-3/4″ x 1-3/4″
**Channel Shear 5″
**H Beams 5″
**T Beams 3-1/2″ x 7/16″
Work Height 44-7/8″
Notching:
Rectangular Notcher 1-3/4″ x 3-9/16″ x 3/8″
**Large V 4″ x 4″ x 3/8″
Work Height 35-1/2″
Special Tooling:
Single V Bending Attachment 10″ with 3″ wide V
Multi V Bending Attachment 19-1/2″ with 1/2″, 3/4″, 1″, 1-1/4″ wide V
**With special tooling only. (Measurements converted from metric units and may not be exact.)
***All specifications are based on 65,000 PSI tensile strength material.
