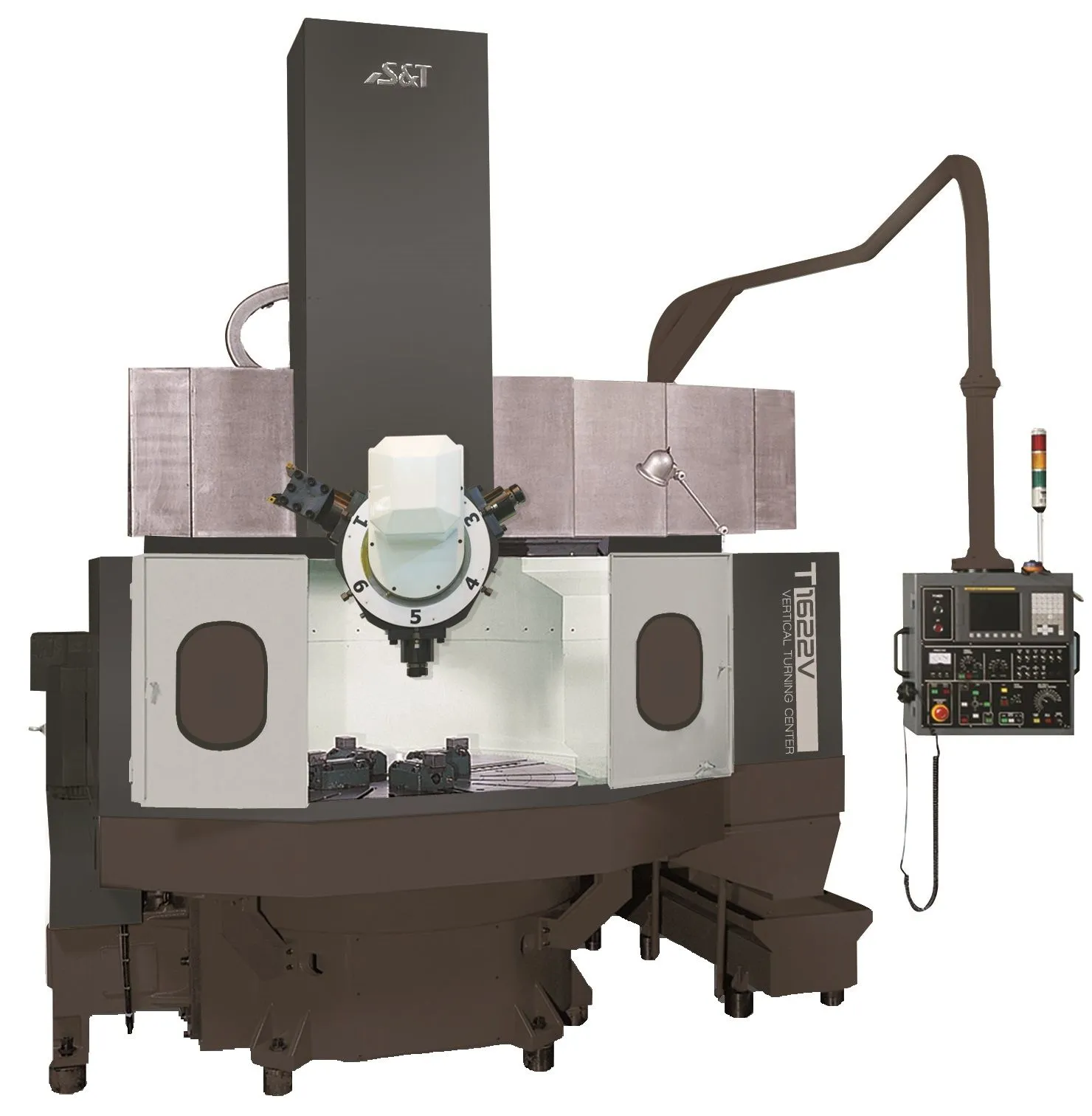

NEW S&T DYNAMICS T1622VM

Illinois, United States
42Listings|5Followers
Overview
Specs
Swing
86.6 in
Turning Diameter
78.7 in
Turning Height
29.5 in
Table Diameter
63 in
Table Capacity
12000 lb
Main Spindle power
60 hp
Main Spindle Speed
256 rpm
256 RPM
Z-Axis Travel
35.4 in
C-Axis Rotation
0.00
0.00
Tool Positions
6
6
Milling Spindle Speed
2000 rpm
2,000 RPM
Milling Spindle Power
10 hp
Dimensions
186" x 169" x 168"
186" x 169" x 168"
Weight
42000
42000
Equipped With

Fanuc 0i-T CNC Control
2-Speed ZF Gear Box
(2) Live tool holders
Central Automatic Lubrication System
Argon Work Light
Central Hydraulic System
Fanuc AC Digital
63" Manual Chuck
Manual Pulse Generator
Foot Switch
Continuous Chip Flush System
Cycle-Finish Signal Light
Coolant Supply Equipment
Machine Leveling Pads & Bolts(set)
Operation & Maintenance Manuals
Splash Guard
Standard Tooling Package
Training, Installation & Warranty *
