USED MULTIVAC R 245
Overview
š Manufacturer Info:
Manufacturer: Multivac
Model: R 245
Serial Number: 137146
Year: 2021
Condition: Unused
Country of Origin: Germany
š Description:

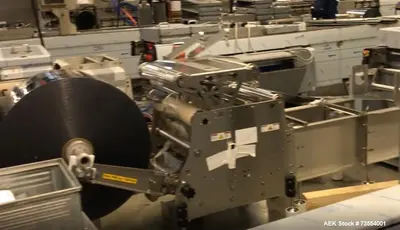

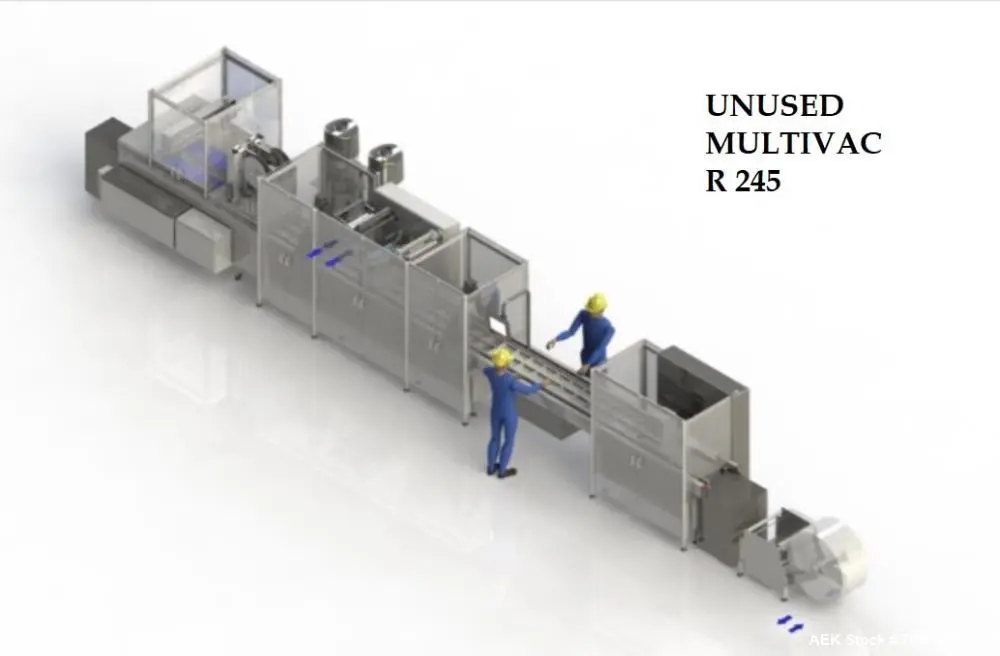

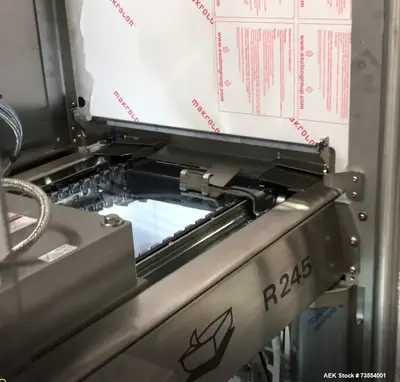

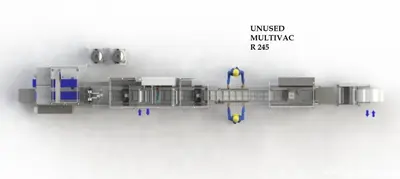

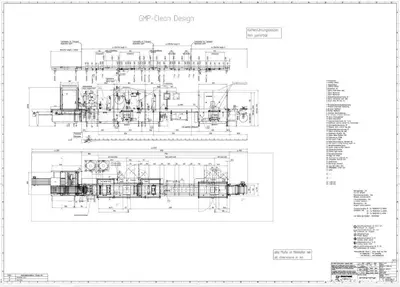

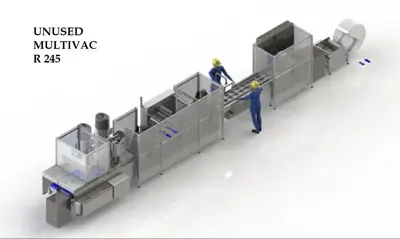

The Multivac R 245 is a fully automatic, stainless steel horizontal form, fill, and seal (FFS) rollstock packaging machine designed with a hygienic GMP-compliant clean design (IP65-rated). Manufactured in 2021 and never used, this system is equipped with optical inspection, inline printing, and automated product handling, making it ideal for packaging medical supplies or other sterile, high-precision applications. Integrated with a Busch vacuum pump, Bell-Mark thermal printer, and full edge trim management, this system ensures accurate, high-speed packaging performance.
š Specifications:
Machine Performance:
Cycle Rate: Approx. 35 cycles/min (load & layout dependent)
Product Weight Max: 2500g
Operating Range:
X Axis: 800mm
Z Axis: 200mm
Format Dimensions:
Width: Max 560mm
Length: Max 500mm
Height: Max 100mm
Packaging Material:

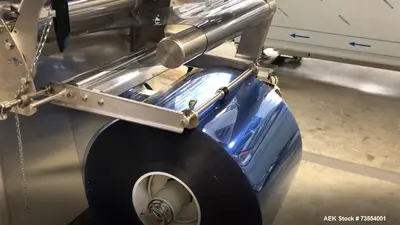

Bottom Web (Rigid): PETG, 362mm width (+2mm), 30mil thickness

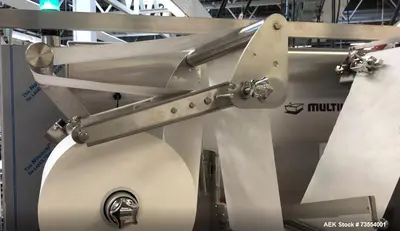

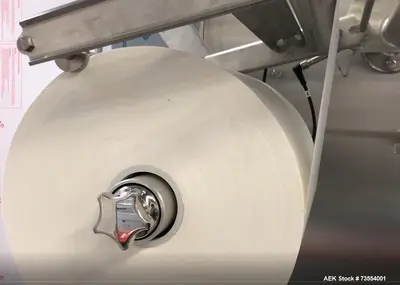

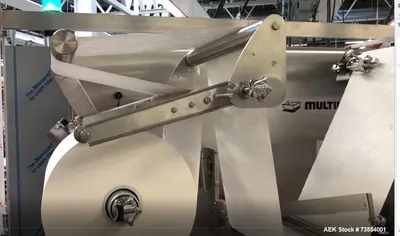

Top Web (Flexible): Tyvek 1059B, 355mm width (+1mm), 4mil thickness
Integrated Components:
Vacuum Pump: Busch SV 1025

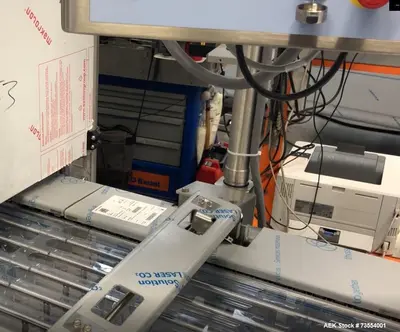

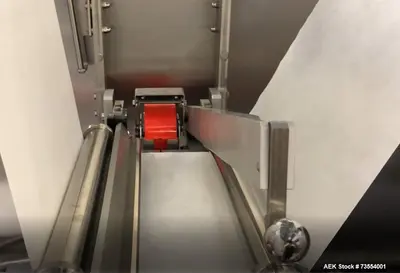

Printer: Bell-Mark 8.3ā EasyPrint MLP thermal transfer printer
Inspection: Inline optical inspection system with photoelectric print registration

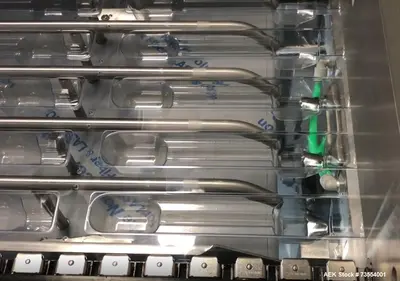

Gripper System: Suction gripper, 1 lane, 6 channel
Punching System: FS 08 (lower), FS 87 (upper) steel rule cross-cut punch

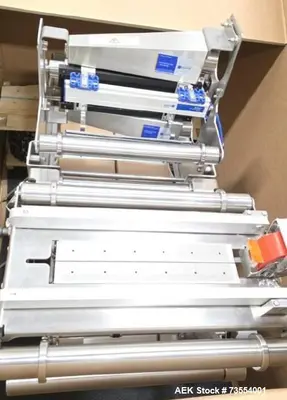

Trim Removal: RSW20 edge trim winder
Controls & Interface:
Machine Control: IPC 06 with Windows Embedded OS

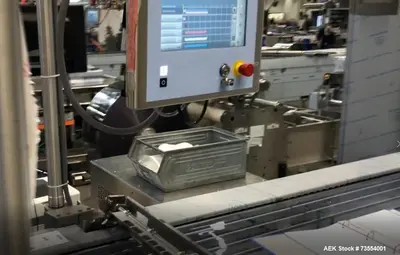

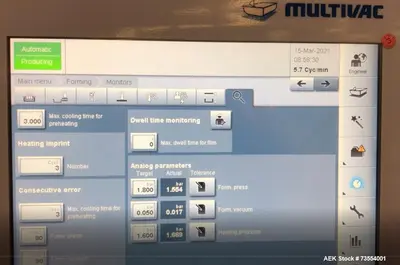

Touchscreen: 12ā HMI 2.0 user interface
Sensors: PT 100 with Multivac plug-in system
Discharge & Cooling:

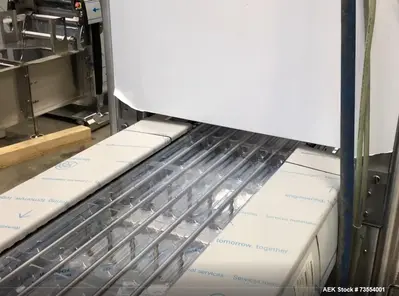

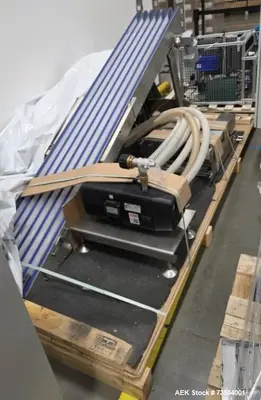

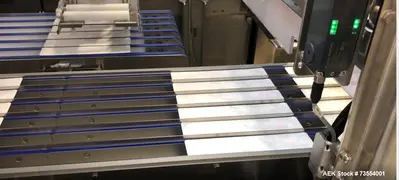

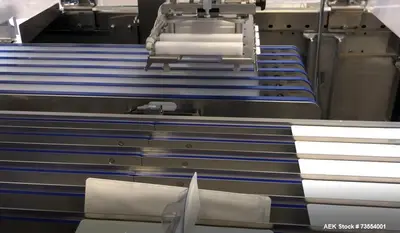

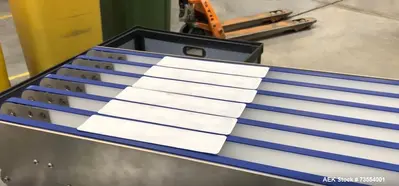

Conveyor: Flat-top chain, 1700mm long x 400mm wide, frequency-controlled
Chiller: Dimplex Model JHI-1500-DM recirculating water chiller
Electrical Requirements:
Power Supply: 3 Phase / 60 Hz / 480V

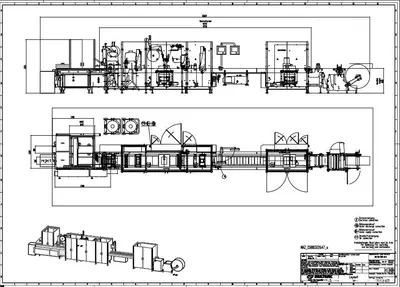

Machine Dimensions:
Length: 9,217mm
Width: 1,042mm
Height: 2,350mm
š§° Applications:
Medical device packaging
Pharmaceutical packaging
Sterile goods packaging
Laboratory equipment packaging
Diagnostics kits packaging
Cleanroom packaging lines
Industrial sterile product lines
Hospital and surgical supply packaging
High-spec flexible packaging environments
Thermoformed tray sealing and labeling
š¦ Products This Is Used For:
Syringes, catheters, and IV components
Medical test kits and diagnostics
Sterile surgical instruments
Hospital PPE kits
Medical device blister packs
Sample collection kits
Clinical trial packaging
Healthcare packaging trays
Lab consumables
Electronic medical components
Specs
Cycle Rate: Approx. 35 cycles/min (load & layout dependent)
Product Weight Max: 2500g
Operating Range:
X Axis: 800mm
Z Axis: 200mm
